ISL9R1560G2-F085
AMI Semiconductor / ON Semiconductor

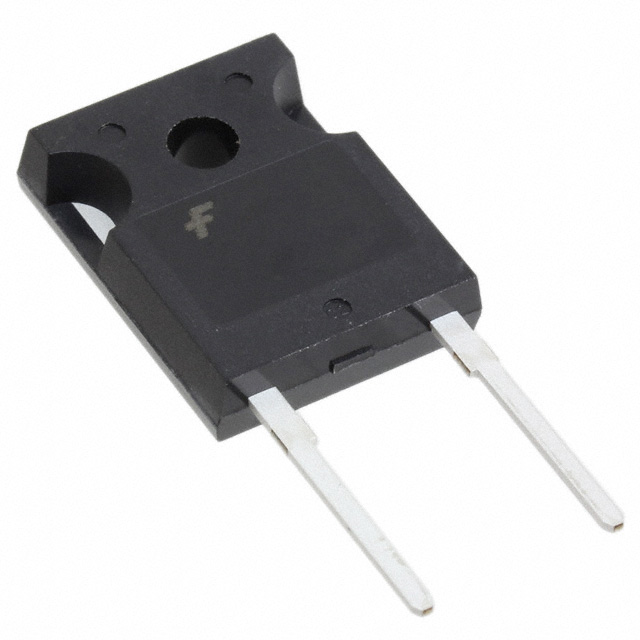

Images are for reference only.
See Product Specifications for product details.
Buy ISL9R1560G2-F085 with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy ISL9R1560G2-F085 with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload ISL9R1560G2-F085 Datasheet| Part Number | ISL9R1560G2-F085 |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | DIODE GEN PURP 600V 15A TO247 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | ISL9R1560G2-F085 |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Product Category | Diodes - Rectifiers - Single |
| Description | DIODE GEN PURP 600V 15A TO247 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 58888 pcs |
| Datasheet | ISL9R1560G2-F085.pdf |
| Voltage - Forward (Vf) (Max) @ If | 2.2V @ 15A |
| Voltage - DC Reverse (Vr) (Max) | 600V |
| Supplier Device Package | TO-247-2 |
| Speed | Fast Recovery = 200mA (Io) |
| Series | Automotive, AEC-Q101, Stealth™ |
| Reverse Recovery Time (trr) | 40ns |
| Packaging | Tube |
| Package / Case | TO-247-2 |
| Other Names | ISL9R1560G2_F085 ISL9R1560G2_F085-ND |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Diode Type | Standard |
| Detailed Description | Diode Standard 600V 15A Through Hole TO-247-2 |
| Current - Reverse Leakage @ Vr | 100µA @ 600V |
| Current - Average Rectified (Io) | 15A |
| Capacitance @ Vr, F | - |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all AMI Semiconductor / ON Semiconductor series electronic components. We have 58888 pcs of AMI Semiconductor / ON SemiconductorISL9R1560G2-F085 in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
