ISL9V5036P3-F085
AMI Semiconductor / ON Semiconductor

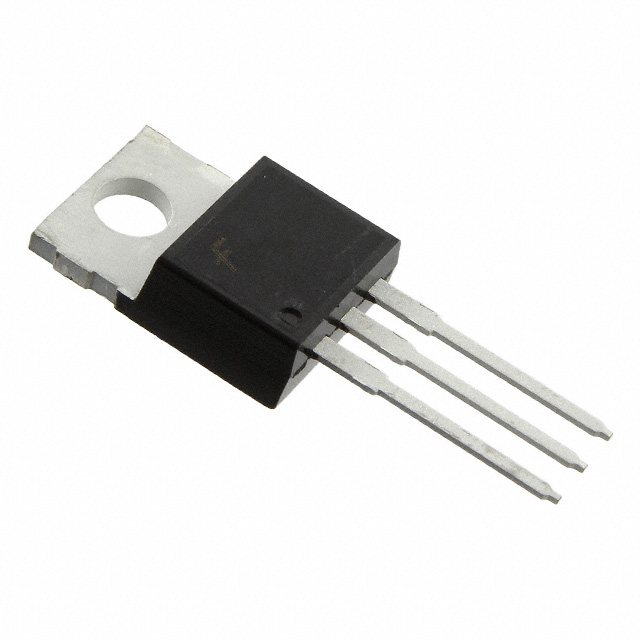

Images are for reference only.
See Product Specifications for product details.
Buy ISL9V5036P3-F085 with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy ISL9V5036P3-F085 with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload ISL9V5036P3-F085 Datasheet| Part Number | ISL9V5036P3-F085 |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | IGBT 390V 46A 250W TO220AA-3 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | ISL9V5036P3-F085 |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Product Category | Transistors - IGBTs - Single |
| Description | IGBT 390V 46A 250W TO220AA-3 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 66199 pcs |
| Datasheet | ISL9V5036P3-F085.pdf |
| Voltage - Collector Emitter Breakdown (Max) | 390V |
| Vce(on) (Max) @ Vge, Ic | 1.6V @ 4V, 10A |
| Test Condition | 300V, 1 kOhm, 5V |
| Td (on/off) @ 25°C | -/10.8µs |
| Switching Energy | - |
| Supplier Device Package | TO-220-3 |
| Series | Automotive, AEC-Q101, EcoSPARK® |
| Power - Max | 250W |
| Packaging | Tube |
| Package / Case | TO-220-3 |
| Other Names | ISL9V5036P3_F085 ISL9V5036P3_F085-ND |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Type | Logic |
| IGBT Type | - |
| Gate Charge | 32nC |
| Detailed Description | IGBT 390V 46A 250W Through Hole TO-220-3 |
| Current - Collector (Ic) (Max) | 46A |
| Base Part Number | ISL9V5036 |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all AMI Semiconductor / ON Semiconductor series electronic components. We have 66199 pcs of AMI Semiconductor / ON SemiconductorISL9V5036P3-F085 in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
