STK5Q4U352J-E
AMI Semiconductor / ON Semiconductor

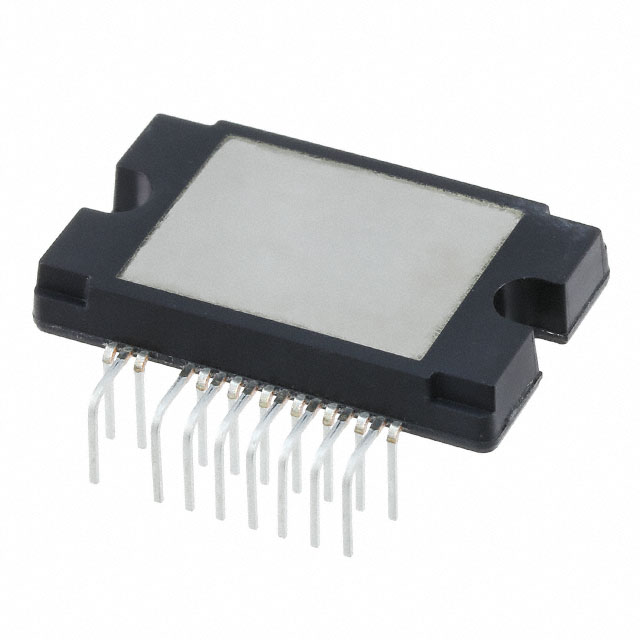

Images are for reference only.
See Product Specifications for product details.
Buy STK5Q4U352J-E with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy STK5Q4U352J-E with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload STK5Q4U352J-E Datasheet| Part Number | STK5Q4U352J-E |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | MODULE IPM INVERTER 3PH SPCM24 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | STK5Q4U352J-E |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Product Category | PMIC - Full, Half-Bridge Drivers |
| Description | MODULE IPM INVERTER 3PH SPCM24 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 12384 pcs |
| Datasheet | STK5Q4U352J-E.pdf |
| Voltage - Supply | 12.5 V ~ 17.5 V |
| Voltage - Load | 400V (Max) |
| Technology | IGBT |
| Supplier Device Package | Module |
| Series | - |
| Rds On (Typ) | - |
| Packaging | Tube |
| Package / Case | Module |
| Output Configuration | Half Bridge (3) |
| Other Names | STK5Q4U352J-E-ND STK5Q4U352J-EOS |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Load Type | Inductive |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Interface | Logic |
| Features | Status Flag |
| Fault Protection | Current Limiting, UVLO |
| Detailed Description | Half Bridge (3) Driver AC Motors IGBT Module |
| Current - Peak Output | 16A |
| Current - Output / Channel | 8A |
| Applications | AC Motors |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all AMI Semiconductor / ON Semiconductor series electronic components. We have 12384 pcs of AMI Semiconductor / ON SemiconductorSTK5Q4U352J-E in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
