NDFPD1N150CG
AMI Semiconductor / ON Semiconductor

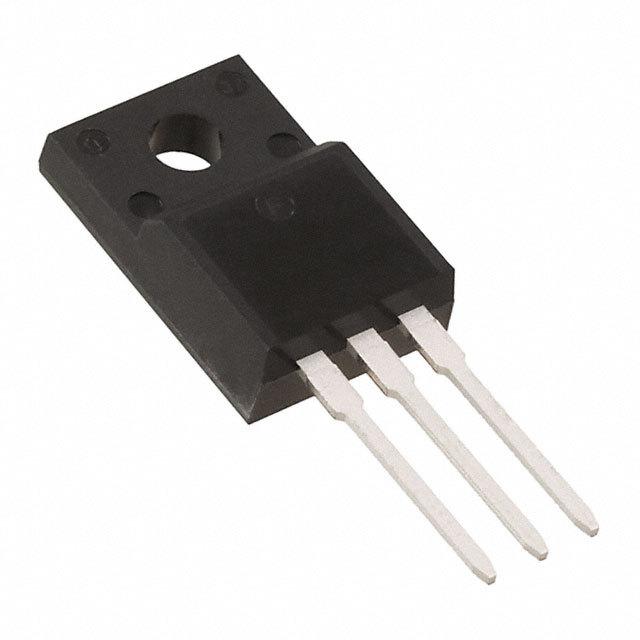

Images are for reference only.
See Product Specifications for product details.
Buy NDFPD1N150CG with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy NDFPD1N150CG with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload NDFPD1N150CG Datasheet| Part Number | NDFPD1N150CG |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | MOSFET N-CH 1500V 100MA TO220 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | NDFPD1N150CG |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Product Category | Transistors - FETs, MOSFETs - Single |
| Description | MOSFET N-CH 1500V 100MA TO220 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 78668 pcs |
| Datasheet | NDFPD1N150CG.pdf |
| Vgs(th) (Max) @ Id | - |
| Vgs (Max) | ±30V |
| Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | TO-220-3 |
| Series | - |
| Rds On (Max) @ Id, Vgs | 150 Ohm @ 50mA, 10V |
| Power Dissipation (Max) | 2W (Ta), 20W (Tc) |
| Packaging | Tube |
| Package / Case | TO-220-3 Full Pack |
| Other Names | NDFPD1N150CGOS |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 80pF @ 30V |
| Gate Charge (Qg) (Max) @ Vgs | 4.2nC @ 10V |
| FET Type | N-Channel |
| FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Drain to Source Voltage (Vdss) | 1500V |
| Detailed Description | N-Channel 1500V 100mA (Ta) 2W (Ta), 20W (Tc) Through Hole TO-220-3 |
| Current - Continuous Drain (Id) @ 25°C | 100mA (Ta) |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all AMI Semiconductor / ON Semiconductor series electronic components. We have 78668 pcs of AMI Semiconductor / ON SemiconductorNDFPD1N150CG in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
