FAN2103EMPX
AMI Semiconductor / ON Semiconductor

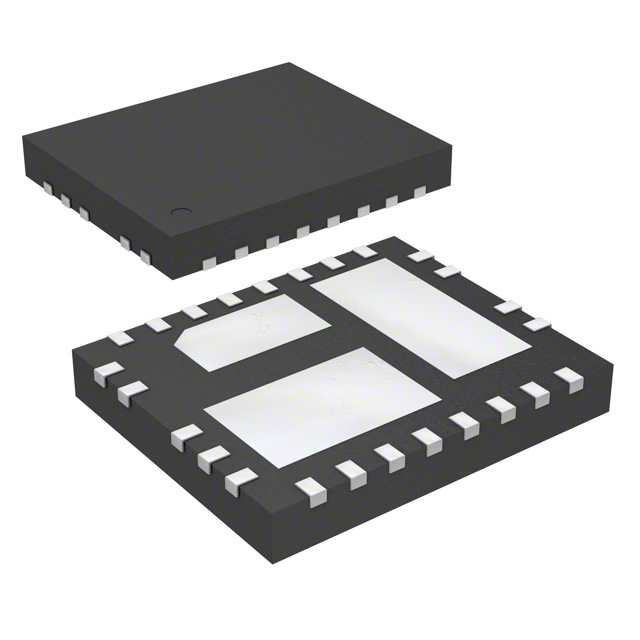

Images are for reference only.
See Product Specifications for product details.
Buy FAN2103EMPX with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy FAN2103EMPX with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload FAN2103EMPX Datasheet| Part Number | FAN2103EMPX |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | IC REG BUCK ADJ 3A SYNC 25MLP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | FAN2103EMPX |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Product Category | PMIC - Voltage Regulators - DC DC Switching Regulators |
| Description | IC REG BUCK ADJ 3A SYNC 25MLP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 34209 pcs |
| Datasheet | FAN2103EMPX.pdf |
| Voltage - Output (Min/Fixed) | 0.8V |
| Voltage - Output (Max) | 21.6V |
| Voltage - Input (Min) | 3V |
| Voltage - Input (Max) | 24V |
| Topology | Buck |
| Synchronous Rectifier | Yes |
| Supplier Device Package | 25-MLP (6x5) |
| Series | TinyBuck® |
| Packaging | Cut Tape (CT) |
| Package / Case | 25-WQFN Exposed Pad |
| Output Type | Adjustable |
| Output Configuration | Positive |
| Other Names | FAN2103EMPXCT |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Number of Outputs | 1 |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Function | Step-Down |
| Frequency - Switching | 300kHz ~ 600kHz |
| Detailed Description | Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 3A 25-WQFN Exposed Pad |
| Current - Output | 3A |
| Base Part Number | FAN2103 |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all AMI Semiconductor / ON Semiconductor series electronic components. We have 34209 pcs of AMI Semiconductor / ON SemiconductorFAN2103EMPX in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
