FSQ510MX
AMI Semiconductor / ON Semiconductor

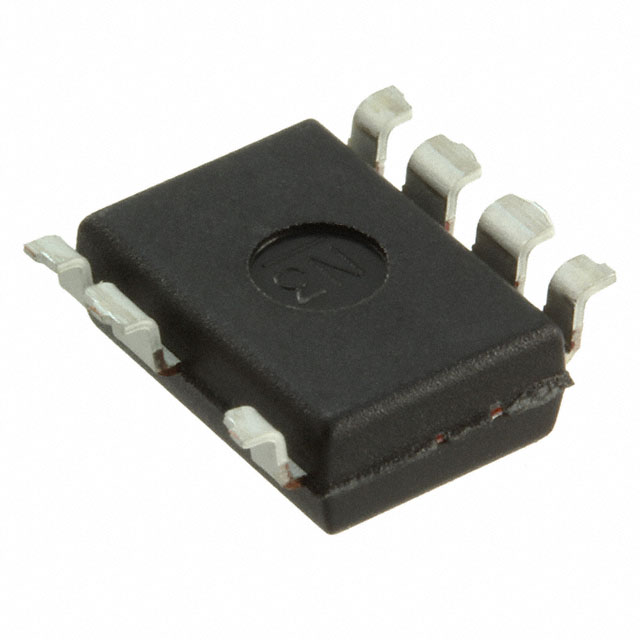

Images are for reference only.
See Product Specifications for product details.
Buy FSQ510MX with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy FSQ510MX with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload FSQ510MX Datasheet| Part Number | FSQ510MX |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | IC OFFLINE SW PWM 7MLSOP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | FSQ510MX |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Product Category | PMIC - AC DC Converters, Offline Switchers |
| Description | IC OFFLINE SW PWM 7MLSOP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 68848 pcs |
| Datasheet | FSQ510MX.pdf |
| Voltage - Supply (Vcc/Vdd) | 6.7 V ~ 20 V |
| Voltage - Start Up | 8.7V |
| Voltage - Breakdown | 700V |
| Topology | Flyback |
| Supplier Device Package | 7-MLSOP |
| Series | FPS™ |
| Power (Watts) | 9W |
| Packaging | Cut Tape (CT) |
| Package / Case | 8-SMD (7 Leads), Gull Wing |
| Output Isolation | Isolated |
| Other Names | FSQ510MXCT |
| Operating Temperature | -40°C ~ 140°C (TJ) |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Internal Switch(s) | Yes |
| Frequency - Switching | 94.3kHz ~ 132kHz |
| Fault Protection | Current Limiting, Over Load, Over Temperature |
| Duty Cycle | 60% |
| Detailed Description | Converter Offline Flyback Topology 94.3kHz ~ 132kHz 7-MLSOP |
| Control Features | Sync |
| Base Part Number | FSQ510 |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all AMI Semiconductor / ON Semiconductor series electronic components. We have 68848 pcs of AMI Semiconductor / ON SemiconductorFSQ510MX in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
