FGL12040WD
AMI Semiconductor / ON Semiconductor

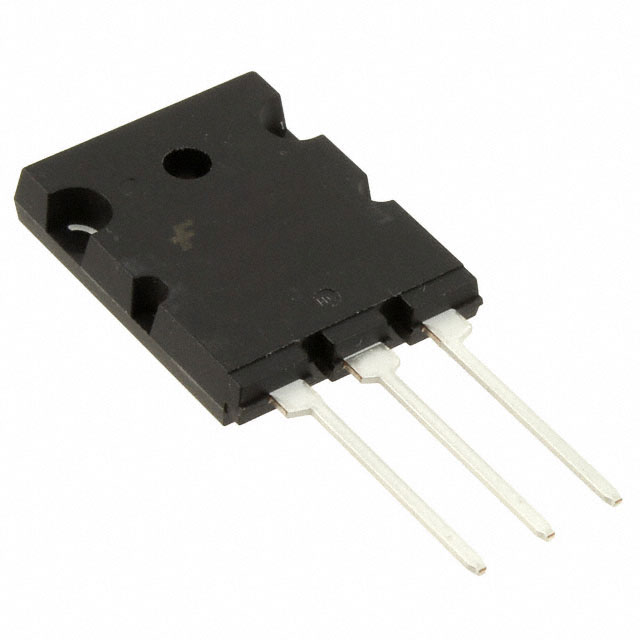

Images are for reference only.
See Product Specifications for product details.
Buy FGL12040WD with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy FGL12040WD with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload FGL12040WD Datasheet| Part Number | FGL12040WD |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | 1200V 40A FS2 TRENCH IGBT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | FGL12040WD |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Product Category | Transistors - IGBTs - Single |
| Description | 1200V 40A FS2 TRENCH IGBT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 17991 pcs |
| Datasheet | FGL12040WD.pdf |
| Voltage - Collector Emitter Breakdown (Max) | 1200V |
| Vce(on) (Max) @ Vge, Ic | 2.9V @ 15V, 40A |
| Test Condition | 600V, 40A, 23 Ohm, 15V |
| Td (on/off) @ 25°C | 45ns/560ns |
| Switching Energy | 4.1mJ (on), 1mJ (off) |
| Supplier Device Package | TO-264 |
| Series | - |
| Reverse Recovery Time (trr) | 71ns |
| Power - Max | 391W |
| Packaging | Tube |
| Package / Case | TO-264-3, TO-264AA |
| Other Names | FGL12040WD-ND FGL12040WDOS |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Type | Standard |
| IGBT Type | Trench Field Stop |
| Gate Charge | 226nC |
| Detailed Description | IGBT Trench Field Stop 1200V 80A 391W Through Hole TO-264 |
| Current - Collector Pulsed (Icm) | 100A |
| Current - Collector (Ic) (Max) | 80A |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all AMI Semiconductor / ON Semiconductor series electronic components. We have 17991 pcs of AMI Semiconductor / ON SemiconductorFGL12040WD in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
