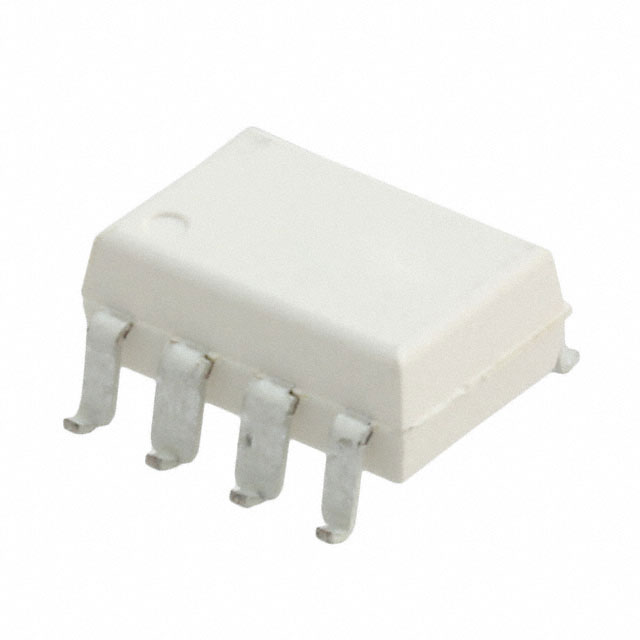

6N137SVM
AMI Semiconductor / ON Semiconductor
Images are for reference only.
See Product Specifications for product details.
Buy 6N137SVM with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy 6N137SVM with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload 6N137SVM Datasheet| Part Number | 6N137SVM |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | OPTOISO 5KV 1CH OPEN COLL 8SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | 6N137SVM |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Product Category | Optoisolators - Logic Output |
| Description | OPTOISO 5KV 1CH OPEN COLL 8SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 132606 pcs |
| Datasheet | 6N137SVM.pdf |
| Voltage - Supply | 4.5 V ~ 5.5 V |
| Voltage - Isolation | 5000Vrms |
| Voltage - Forward (Vf) (Typ) | 1.45V |
| Supplier Device Package | 8-SMD |
| Series | - |
| Rise / Fall Time (Typ) | 30ns, 10ns |
| Propagation Delay tpLH / tpHL (Max) | 75ns, 75ns |
| Packaging | Tube |
| Package / Case | 8-SMD, Gull Wing |
| Output Type | Open Collector |
| Other Names | 6N137SVMCT 6N137SVMCT-ND 6N137SVMTR 6N137SVMTR-ND |
| Operating Temperature | -40°C ~ 100°C |
| Number of Channels | 1 |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inputs - Side 1/Side 2 | 1/0 |
| Input Type | DC |
| Detailed Description | Logic Output Optoisolator 10Mbps Open Collector 5000Vrms 1 Channel 10kV/µs (Typ) CMTI 8-SMD |
| Data Rate | 10Mbps |
| Current - Output / Channel | 50mA |
| Current - DC Forward (If) (Max) | 50mA |
| Common Mode Transient Immunity (Min) | 10kV/µs (Typ) |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all AMI Semiconductor / ON Semiconductor series electronic components. We have 132606 pcs of AMI Semiconductor / ON Semiconductor6N137SVM in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
