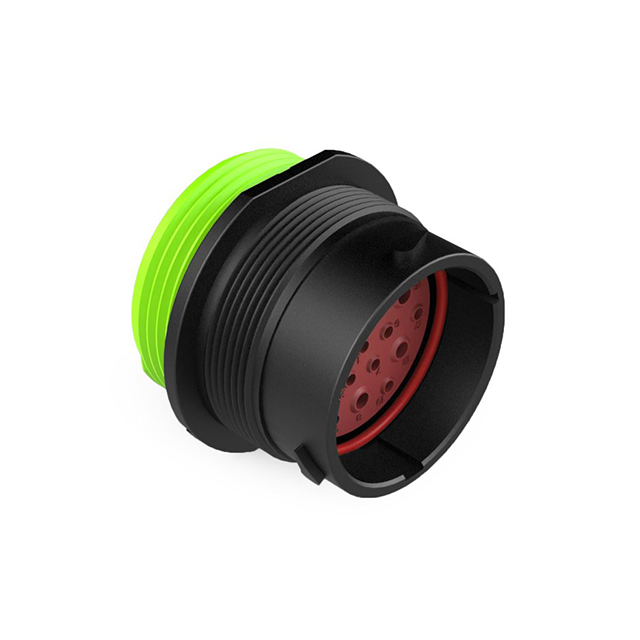

AHDP04-24-19PN-WTA
Amphenol Tuchel Electronics
Images are for reference only.
See Product Specifications for product details.
Buy AHDP04-24-19PN-WTA with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy AHDP04-24-19PN-WTA with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload AHDP04-24-19PN-WTA Datasheet| Part Number | AHDP04-24-19PN-WTA |
|---|---|
| Manufacturer | Amphenol Tuchel Electronics |
| Description | CONN RCPT HSG MALE 19POS PNL MNT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | AHDP04-24-19PN-WTA |
|---|---|
| Manufacturer | Amphenol Tuchel Electronics |
| Product Category | Circular Connectors - Housings |
| Description | CONN RCPT HSG MALE 19POS PNL MNT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 17097 pcs |
| Datasheet | AHDP04-24-19PN-WTA.pdf |
| Type | For Male Pins |
| Shielding | Unshielded |
| Shell Size, MIL | - |
| Shell Size - Insert | 24-19 |
| Shell Material | Thermoplastic |
| Shell Finish | - |
| Series | AHDP Dura|Mate™ |
| Packaging | Bulk |
| Other Names | 889-1764 |
| Orientation | Keyed |
| Operating Temperature | -55°C ~ 125°C |
| Number of Positions | 19 |
| Note | Contacts Not Included; Jam Nut Not Included |
| Mounting Type | Panel Mount |
| Mounting Feature | Bulkhead - Front Side Nut |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | Thermoplastic |
| Ingress Protection | IP67/69K - Dust Tight, Water Resistant, Waterproof |
| Includes | - |
| Housing Color | Black |
| Features | - |
| Fastening Type | Bayonet Lock |
| Detailed Description | 19 Position Circular Connector Receptacle Housing Panel Mount |
| Coupling Nut Material, Plating | - |
| Coupling Nut Diameter | - |
| Contact Type | Crimp |
| Contact Size | 12 (6), 16 (13) |
| Contact Shape | Circular |
| Connector Type | Receptacle Housing |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all Amphenol Tuchel Electronics series electronic components. We have 17097 pcs of Amphenol Tuchel ElectronicsAHDP04-24-19PN-WTA in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
