AT04-12PC-BM01
Amphenol Tuchel Electronics

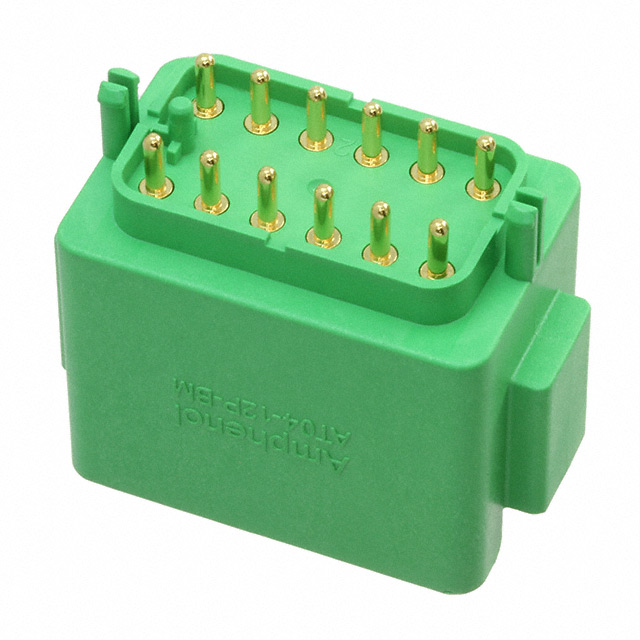

Images are for reference only.
See Product Specifications for product details.
Buy AT04-12PC-BM01 with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy AT04-12PC-BM01 with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload AT04-12PC-BM01 Datasheet| Part Number | AT04-12PC-BM01 |
|---|---|
| Manufacturer | Amphenol Tuchel Electronics |
| Description | AT RECEPTACLE, 12 PIN (GOLD) PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | AT04-12PC-BM01 |
|---|---|
| Manufacturer | Amphenol Tuchel Electronics |
| Product Category | Rectangular Connectors - Headers, Male Pins |
| Description | AT RECEPTACLE, 12 PIN (GOLD) PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 28947 pcs |
| Datasheet | AT04-12PC-BM01.pdf |
| Voltage Rating | - |
| Termination | Solder |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Series | AT Series™ |
| Row Spacing - Mating | - |
| Pitch - Mating | - |
| Packaging | Bulk |
| Overall Contact Length | - |
| Other Names | 889-1925 |
| Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 |
| Number of Positions Loaded | All |
| Number of Positions | 12 |
| Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - |
| Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Thermoplastic |
| Insulation Height | 0.835" (21.21mm) |
| Insulation Color | Green |
| Ingress Protection | IP67 |
| Features | Board Lock |
| Fastening Type | Latch Holder |
| Detailed Description | Connector Header Through Hole 12 position |
| Current Rating | 13A |
| Contact Type | Male Pin |
| Contact Shape | Circular |
| Contact Material | Copper Alloy |
| Contact Length - Post | - |
| Contact Length - Mating | - |
| Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | - |
| Contact Finish - Mating | Gold |
| Connector Type | Receptacle |
| Applications | Automotive, General Purpose, Industrial |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all Amphenol Tuchel Electronics series electronic components. We have 28947 pcs of Amphenol Tuchel ElectronicsAT04-12PC-BM01 in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
