ZXTC6718MCTA
Diodes Incorporated

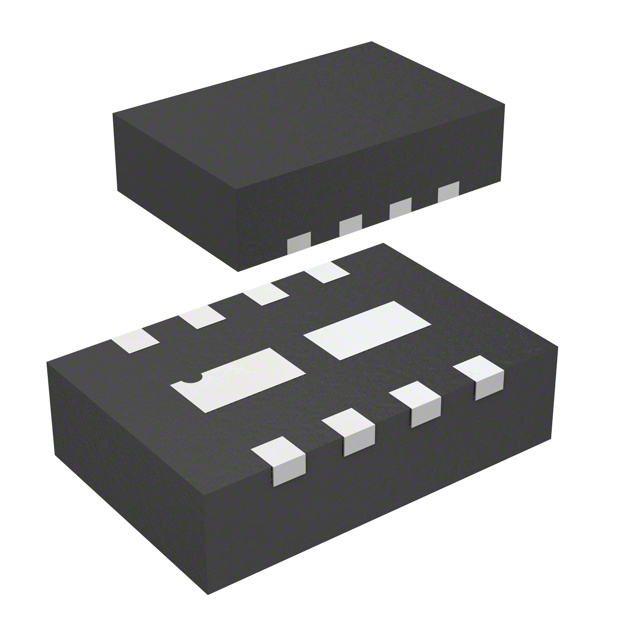

Images are for reference only.
See Product Specifications for product details.
Buy ZXTC6718MCTA with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy ZXTC6718MCTA with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload ZXTC6718MCTA Datasheet| Part Number | ZXTC6718MCTA |
|---|---|
| Manufacturer | Diodes Incorporated |
| Description | TRANS NPN/PNP 20V 4.5A/3.5A 8DFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | ZXTC6718MCTA |
|---|---|
| Manufacturer | Diodes Incorporated |
| Product Category | Transistors - Bipolar (BJT) - Arrays |
| Description | TRANS NPN/PNP 20V 4.5A/3.5A 8DFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 193756 pcs |
| Datasheet | ZXTC6718MCTA.pdf |
| Voltage - Collector Emitter Breakdown (Max) | 20V |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 125mA, 4.5A / 300mV @ 350mA, 3.5A |
| Transistor Type | NPN, PNP |
| Supplier Device Package | 8-DFN (3x2) |
| Series | - |
| Power - Max | 1.7W |
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-WDFN Exposed Pad |
| Other Names | ZXTC6718MCTATR |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Frequency - Transition | 140MHz, 180MHz |
| Detailed Description | Bipolar (BJT) Transistor Array NPN, PNP 20V 4.5A, 3.5A 140MHz, 180MHz 1.7W Surface Mount 8-DFN (3x2) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 200 @ 2A, 2V / 150 @ 2A, 2V |
| Current - Collector Cutoff (Max) | 100nA |
| Current - Collector (Ic) (Max) | 4.5A, 3.5A |
| Base Part Number | ZXTC6718MC |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all Diodes Incorporated series electronic components. We have 193756 pcs of Diodes IncorporatedZXTC6718MCTA in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
