PAM2325AGPADJ
Diodes Incorporated

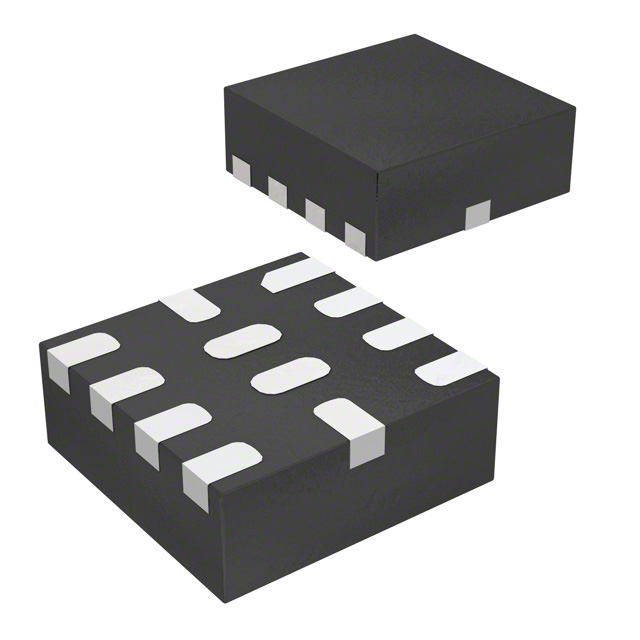

Images are for reference only.
See Product Specifications for product details.
Buy PAM2325AGPADJ with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy PAM2325AGPADJ with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload PAM2325AGPADJ Datasheet| Part Number | PAM2325AGPADJ |
|---|---|
| Manufacturer | Diodes Incorporated |
| Description | IC REG BUCK ADJ 3.5A SYNC 12QFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | PAM2325AGPADJ |
|---|---|
| Manufacturer | Diodes Incorporated |
| Product Category | PMIC - Voltage Regulators - DC DC Switching Regulators |
| Description | IC REG BUCK ADJ 3.5A SYNC 12QFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 157453 pcs |
| Datasheet | PAM2325AGPADJ.pdf |
| Voltage - Output (Min/Fixed) | 1V |
| Voltage - Output (Max) | 4V |
| Voltage - Input (Min) | 2.5V |
| Voltage - Input (Max) | 5.5V |
| Topology | Buck |
| Synchronous Rectifier | Yes |
| Supplier Device Package | 12-QFN (2x2) |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-WFQFN Exposed Pad |
| Output Type | Adjustable |
| Output Configuration | Positive |
| Other Names | PAM2325AGPADJDI PAM2325AGPADJDI-ND PAM2325AGPADJDITR |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Number of Outputs | 1 |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Function | Step-Down |
| Frequency - Switching | 1.2MHz |
| Detailed Description | Buck Switching Regulator IC Positive Adjustable 1V 1 Output 3.5A 12-WFQFN Exposed Pad |
| Current - Output | 3.5A |
| Base Part Number | PAM2325 |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all Diodes Incorporated series electronic components. We have 157453 pcs of Diodes IncorporatedPAM2325AGPADJ in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
