ZTX692B
Diodes Incorporated

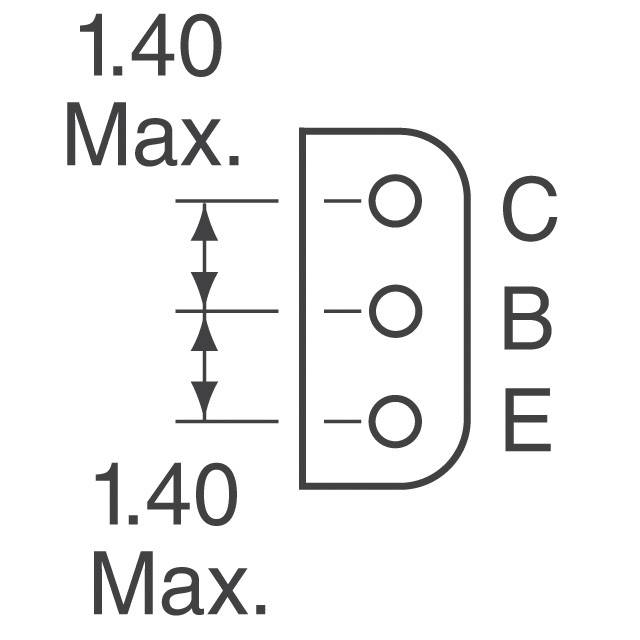

Images are for reference only.
See Product Specifications for product details.
Buy ZTX692B with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy ZTX692B with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload ZTX692B Datasheet| Part Number | ZTX692B |
|---|---|
| Manufacturer | Diodes Incorporated |
| Description | TRANS NPN 70V 1A E-LINE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | ZTX692B |
|---|---|
| Manufacturer | Diodes Incorporated |
| Product Category | Transistors - Bipolar (BJT) - Single |
| Description | TRANS NPN 70V 1A E-LINE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 136576 pcs |
| Datasheet | ZTX692B.pdf |
| Voltage - Collector Emitter Breakdown (Max) | 70V |
| Vce Saturation (Max) @ Ib, Ic | 500mV @ 10mA, 1A |
| Transistor Type | NPN |
| Supplier Device Package | E-Line (TO-92 compatible) |
| Series | - |
| Power - Max | 1W |
| Packaging | Bulk |
| Package / Case | E-Line-3 |
| Operating Temperature | -55°C ~ 200°C (TJ) |
| Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Frequency - Transition | 150MHz |
| Detailed Description | Bipolar (BJT) Transistor NPN 70V 1A 150MHz 1W Through Hole E-Line (TO-92 compatible) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 400 @ 500mA, 2V |
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| Current - Collector (Ic) (Max) | 1A |
| Base Part Number | ZTX692B |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all Diodes Incorporated series electronic components. We have 136576 pcs of Diodes IncorporatedZTX692B in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
