ZXT14P40DXTA
Diodes Incorporated

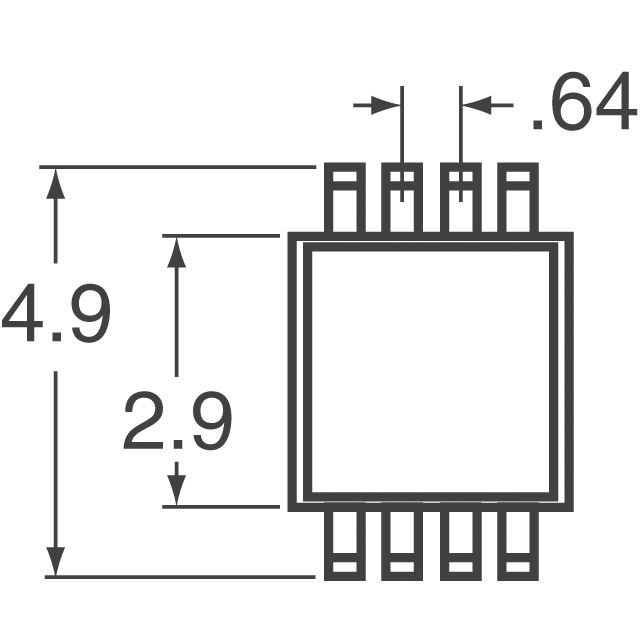

Images are for reference only.
See Product Specifications for product details.
Buy ZXT14P40DXTA with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy ZXT14P40DXTA with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload ZXT14P40DXTA Datasheet| Part Number | ZXT14P40DXTA |
|---|---|
| Manufacturer | Diodes Incorporated |
| Description | TRANS PNP LO SAT -40V -4A 8-MSOP |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | ZXT14P40DXTA |
|---|---|
| Manufacturer | Diodes Incorporated |
| Product Category | Transistors - Bipolar (BJT) - Single |
| Description | TRANS PNP LO SAT -40V -4A 8-MSOP |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 131005 pcs |
| Datasheet | ZXT14P40DXTA.pdf |
| Voltage - Collector Emitter Breakdown (Max) | 40V |
| Vce Saturation (Max) @ Ib, Ic | 160mV @ 200mA, 4A |
| Transistor Type | PNP |
| Supplier Device Package | 8-MSOP |
| Series | - |
| Power - Max | 1.1W |
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Other Names | ZXT14P40DXTR |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Frequency - Transition | 185MHz |
| Detailed Description | Bipolar (BJT) Transistor PNP 40V 4A 185MHz 1.1W Surface Mount 8-MSOP |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 300 @ 1A, 2V |
| Current - Collector Cutoff (Max) | 100nA |
| Current - Collector (Ic) (Max) | 4A |
| Base Part Number | ZXT14P40D |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all Diodes Incorporated series electronic components. We have 131005 pcs of Diodes IncorporatedZXT14P40DXTA in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
