74LVC1G08Z-7
Diodes Incorporated

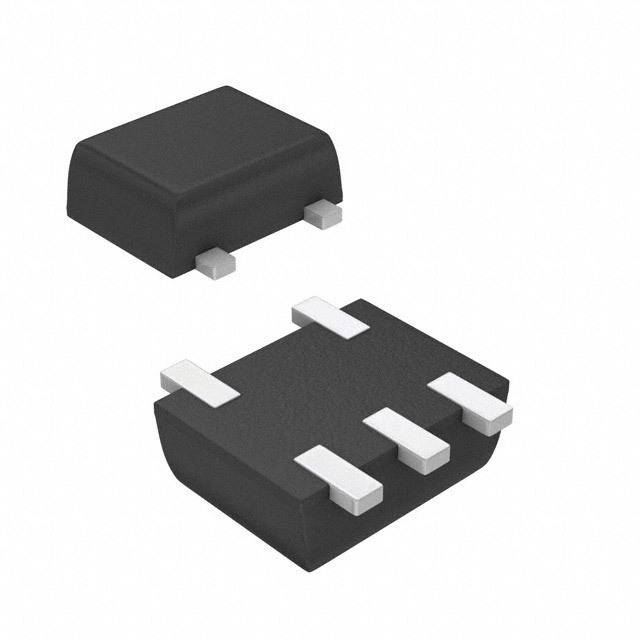

Images are for reference only.
See Product Specifications for product details.
Buy 74LVC1G08Z-7 with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy 74LVC1G08Z-7 with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload 74LVC1G08Z-7 Datasheet| Part Number | 74LVC1G08Z-7 |
|---|---|
| Manufacturer | Diodes Incorporated |
| Description | IC GATE AND 1CH 2-INP SOT553 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | 74LVC1G08Z-7 |
|---|---|
| Manufacturer | Diodes Incorporated |
| Product Category | Logic - Gates and Inverters |
| Description | IC GATE AND 1CH 2-INP SOT553 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 733611 pcs |
| Datasheet | 74LVC1G08Z-7.pdf |
| Voltage - Supply | 1.65 V ~ 5.5 V |
| Supplier Device Package | SOT-553 |
| Series | 74LVC |
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-553 |
| Other Names | 74LVC1G08Z-7DITR 74LVC1G08Z7 |
| Operating Temperature | -40°C ~ 125°C |
| Number of Inputs | 2 |
| Number of Circuits | 1 |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Max Propagation Delay @ V, Max CL | 1.7ns @ 5V, 50pF |
| Logic Type | AND Gate |
| Logic Level - Low | 0.7 V ~ 0.8 V |
| Logic Level - High | 1.7 V ~ 2 V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | - |
| Detailed Description | AND Gate IC 1 Channel SOT-553 |
| Current - Quiescent (Max) | 200µA |
| Current - Output High, Low | 32mA, 32mA |
| Base Part Number | 74LVC1G08 |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all Diodes Incorporated series electronic components. We have 733611 pcs of Diodes Incorporated74LVC1G08Z-7 in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
