AL1794AFE-13
Diodes Incorporated

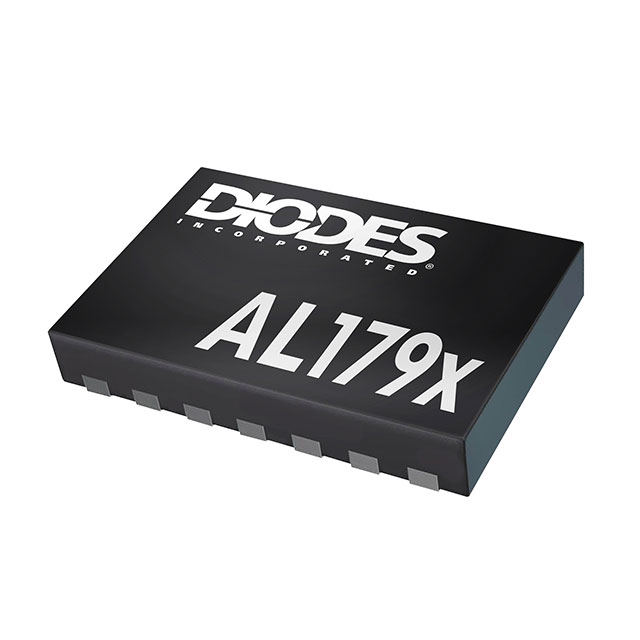

Images are for reference only.
See Product Specifications for product details.
Buy AL1794AFE-13 with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy AL1794AFE-13 with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload AL1794AFE-13 Datasheet| Part Number | AL1794AFE-13 |
|---|---|
| Manufacturer | Diodes Incorporated |
| Description | IC LED LINEAR DRIVER 14UDFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | AL1794AFE-13 |
|---|---|
| Manufacturer | Diodes Incorporated |
| Product Category | PMIC - LED Drivers |
| Description | IC LED LINEAR DRIVER 14UDFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 92213 pcs |
| Datasheet | AL1794AFE-13.pdf |
| Voltage - Supply (Min) | 6.5V |
| Voltage - Supply (Max) | 30V |
| Voltage - Output | 30V |
| Type | Linear |
| Topology | - |
| Supplier Device Package | U-DFN4030-14 |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 14-UFDFN Exposed Pad |
| Other Names | AL1794AFE-13DITR |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Number of Outputs | 4 |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Internal Switch(s) | Yes |
| Frequency | - |
| Dimming | Analog, PWM |
| Detailed Description | LED Driver IC 4 Output Linear Analog, PWM Dimming 125mA, 375mA, 500mA U-DFN4030-14 |
| Current - Output / Channel | 125mA, 375mA, 500mA |
| Applications | Lighting |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all Diodes Incorporated series electronic components. We have 92213 pcs of Diodes IncorporatedAL1794AFE-13 in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
