AL5809-25S1-7
Diodes Incorporated

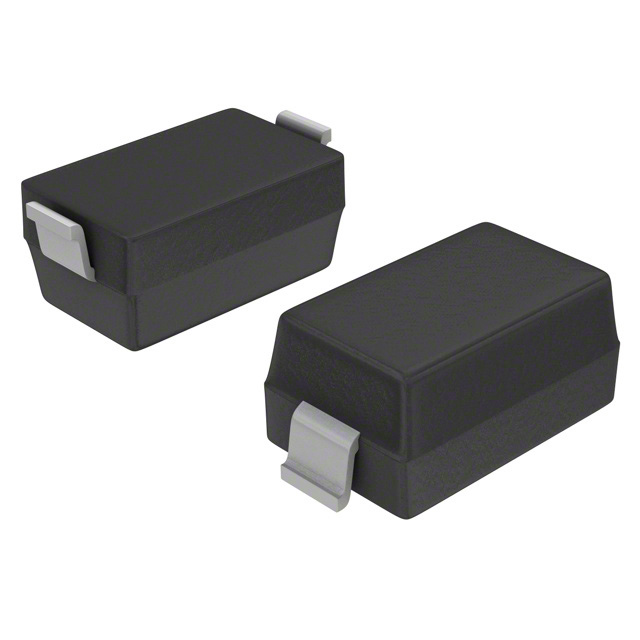

Images are for reference only.
See Product Specifications for product details.
Buy AL5809-25S1-7 with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy AL5809-25S1-7 with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload AL5809-25S1-7 Datasheet| Part Number | AL5809-25S1-7 |
|---|---|
| Manufacturer | Diodes Incorporated |
| Description | IC LED DV HV 600V SOD123 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | AL5809-25S1-7 |
|---|---|
| Manufacturer | Diodes Incorporated |
| Product Category | PMIC - LED Drivers |
| Description | IC LED DV HV 600V SOD123 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 339646 pcs |
| Datasheet | AL5809-25S1-7.pdf |
| Voltage - Supply (Min) | 2.5V |
| Voltage - Supply (Max) | 60V |
| Voltage - Output | 60V |
| Type | Linear |
| Topology | - |
| Supplier Device Package | SOD-123 |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | SOD-123 |
| Other Names | AL5809-25S1-7DI |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Number of Outputs | 1 |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Internal Switch(s) | Yes |
| Frequency | - |
| Dimming | PWM |
| Detailed Description | LED Driver IC 1 Output Linear PWM Dimming 25mA SOD-123 |
| Current - Output / Channel | 25mA |
| Applications | Signage |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all Diodes Incorporated series electronic components. We have 339646 pcs of Diodes IncorporatedAL5809-25S1-7 in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
