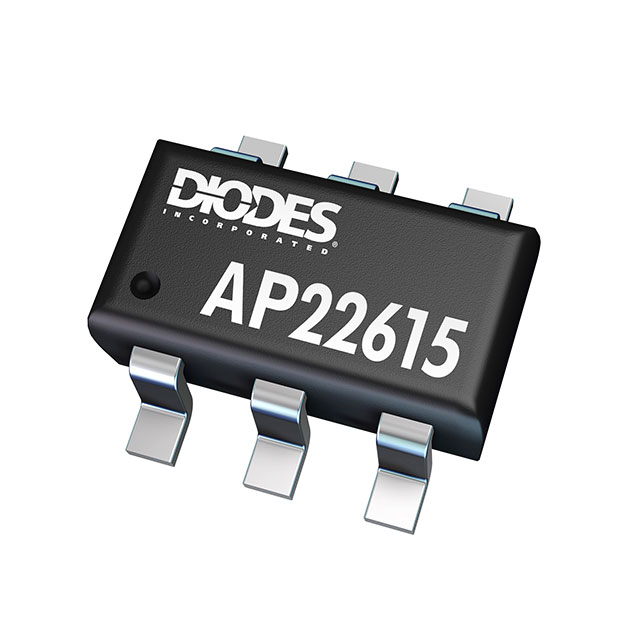

AP22615AWU-7
Diodes Incorporated
Images are for reference only.
See Product Specifications for product details.
Buy AP22615AWU-7 with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy AP22615AWU-7 with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload AP22615AWU-7 Datasheet| Part Number | AP22615AWU-7 |
|---|---|
| Manufacturer | Diodes Incorporated |
| Description | IC LOAD SWITCH TSOT26 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | AP22615AWU-7 |
|---|---|
| Manufacturer | Diodes Incorporated |
| Product Category | PMIC - Power Distribution Switches, Load Drivers |
| Description | IC LOAD SWITCH TSOT26 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 157023 pcs |
| Datasheet | AP22615AWU-7.pdf |
| Voltage - Supply (Vcc/Vdd) | 3 V ~ 5.5 V |
| Voltage - Load | 0 V ~ 23 V |
| Switch Type | USB Switch |
| Supplier Device Package | TSOT-26 |
| Series | - |
| Rds On (Typ) | 40 mOhm |
| Ratio - Input:Output | 1:1 |
| Packaging | Cut Tape (CT) |
| Package / Case | SOT-23-6 Thin, TSOT-23-6 |
| Output Type | N/P-Channel |
| Output Configuration | High Side |
| Other Names | AP22615AWU-7DICT |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Number of Outputs | 1 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Interface | On/Off |
| Input Type | Non-Inverting |
| Features | Load Discharge, Status Flag |
| Fault Protection | Over Current, Over Temperature, Over Voltage, Short Circuit |
| Current - Output (Max) | 3A |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all Diodes Incorporated series electronic components. We have 157023 pcs of Diodes IncorporatedAP22615AWU-7 in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
