AP7343D-22FS4-7B
Diodes Incorporated

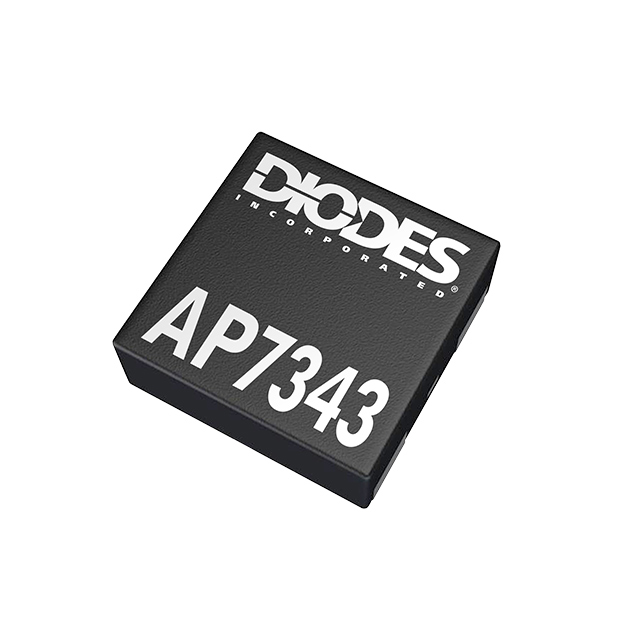

Images are for reference only.
See Product Specifications for product details.
Buy AP7343D-22FS4-7B with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy AP7343D-22FS4-7B with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload AP7343D-22FS4-7B Datasheet| Part Number | AP7343D-22FS4-7B |
|---|---|
| Manufacturer | Diodes Incorporated |
| Description | IC REG LINEAR 2.2V 300MA 4DFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | AP7343D-22FS4-7B |
|---|---|
| Manufacturer | Diodes Incorporated |
| Product Category | PMIC - Voltage Regulators - Linear |
| Description | IC REG LINEAR 2.2V 300MA 4DFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 444442 pcs |
| Datasheet | AP7343D-22FS4-7B.pdf |
| Voltage Dropout (Max) | 0.34V @ 300mA |
| Voltage - Output (Min/Fixed) | 2.2V |
| Voltage - Output (Max) | - |
| Voltage - Input (Max) | 5.25V |
| Supplier Device Package | X2-DFN1010-4 |
| Series | - |
| Protection Features | Over Current |
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-XDFN Exposed Pad |
| PSRR | 75dB (1kHz) |
| Output Type | Fixed |
| Output Configuration | Positive |
| Operating Temperature | -40°C ~ 85°C |
| Number of Regulators | 1 |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Detailed Description | Linear Voltage Regulator IC Positive Fixed 1 Output 2.2V 300mA X2-DFN1010-4 |
| Current - Quiescent (Iq) | 60µA |
| Current - Output | 300mA |
| Control Features | Enable |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all Diodes Incorporated series electronic components. We have 444442 pcs of Diodes IncorporatedAP7343D-22FS4-7B in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
