AH276Z4-BG1
Diodes Incorporated

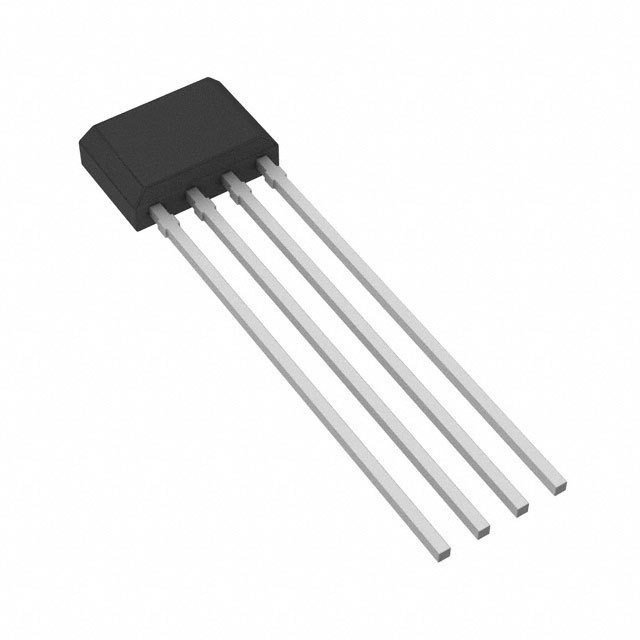

Images are for reference only.
See Product Specifications for product details.
Buy AH276Z4-BG1 with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy AH276Z4-BG1 with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload AH276Z4-BG1 Datasheet| Part Number | AH276Z4-BG1 |
|---|---|
| Manufacturer | Diodes Incorporated |
| Description | MAGNETIC SWITCH LATCH TO94 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | AH276Z4-BG1 |
|---|---|
| Manufacturer | Diodes Incorporated |
| Product Category | Magnetic Sensors - Switches (Solid State) |
| Description | MAGNETIC SWITCH LATCH TO94 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 244466 pcs |
| Datasheet | AH276Z4-BG1.pdf |
| Voltage - Supply | 3.5 V ~ 16 V |
| Test Condition | 25°C |
| Technology | Hall Effect |
| Supplier Device Package | TO-94 |
| Series | - |
| Sensing Range | 7mT Trip, -7mT Release |
| Polarization | South Pole |
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SSIP |
| Output Type | Open Collector |
| Operating Temperature | -20°C ~ 85°C (TA) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Function | Latch |
| Features | Temperature Compensated |
| Detailed Description | Digital Switch Latch Open Collector Hall Effect TO-94 |
| Current - Supply (Max) | 16mA |
| Current - Output (Max) | 350mA |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all Diodes Incorporated series electronic components. We have 244466 pcs of Diodes IncorporatedAH276Z4-BG1 in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
