IR22141SSPBF
International Rectifier (Infineon Technologies)
_medium.jpg){kind=logo}

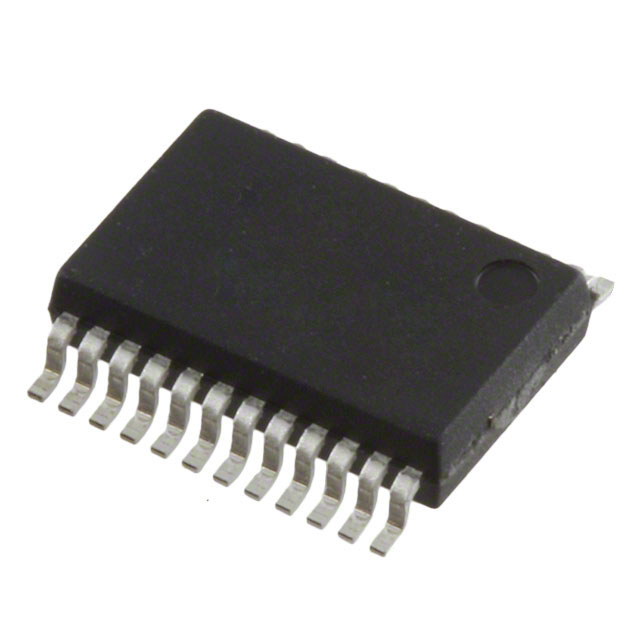

Images are for reference only.
See Product Specifications for product details.
Buy IR22141SSPBF with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy IR22141SSPBF with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload IR22141SSPBF Datasheet| Part Number | IR22141SSPBF |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Description | IC DRIVER HALF BRIDGE SGL 24SSOP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | IR22141SSPBF |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Product Category | PMIC - Gate Drivers |
| Description | IC DRIVER HALF BRIDGE SGL 24SSOP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4116 pcs |
| Datasheet | IR22141SSPBF.pdf |
| Voltage - Supply | 11.5 V ~ 20 V |
| Supplier Device Package | 24-SSOP |
| Series | - |
| Rise / Fall Time (Typ) | 24ns, 7ns |
| Packaging | Tube |
| Package / Case | 24-SSOP (0.209", 5.30mm Width) |
| Other Names | SP001547750 |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Number of Drivers | 2 |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Logic Voltage - VIL, VIH | 0.8V, 2V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 1200V |
| Gate Type | IGBT |
| Driven Configuration | Half-Bridge |
| Detailed Description | Half-Bridge Gate Driver IC Non-Inverting 24-SSOP |
| Current - Peak Output (Source, Sink) | 2A, 3A |
| Channel Type | Independent |
| Base Part Number | IR22141SSPBF |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all International Rectifier (Infineon Technologies) series electronic components. We have 4116 pcs of International Rectifier (Infineon Technologies)IR22141SSPBF in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
