2ED020I12-F
International Rectifier (Infineon Technologies)
_medium.jpg){kind=logo}

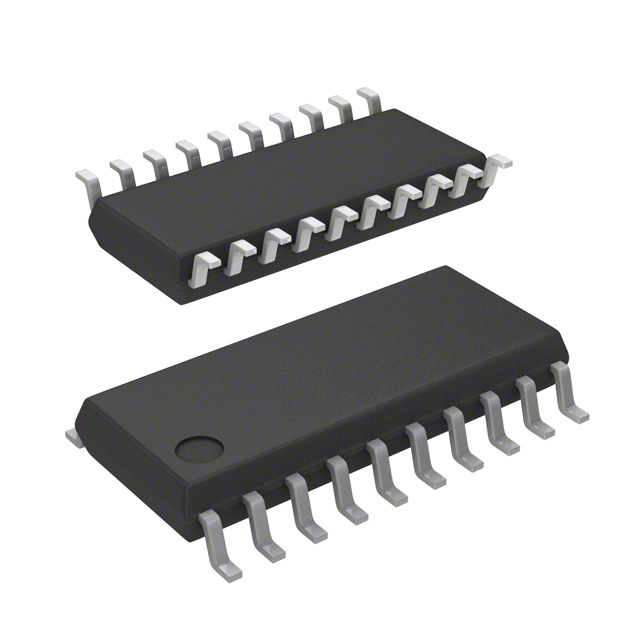

Images are for reference only.
See Product Specifications for product details.
Buy 2ED020I12-F with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy 2ED020I12-F with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload 2ED020I12-F Datasheet| Part Number | 2ED020I12-F |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Description | IC DRIVER IGBT 2-CHAN PDSO-18-1 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | 2ED020I12-F |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Product Category | PMIC - Gate Drivers |
| Description | IC DRIVER IGBT 2-CHAN PDSO-18-1 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5784 pcs |
| Datasheet | 2ED020I12-F.pdf |
| Voltage - Supply | 0 V ~ 18 V |
| Supplier Device Package | PG-DSO-18-2 |
| Series | - |
| Rise / Fall Time (Typ) | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-SOIC (0.295", 7.50mm Width), 18 Leads |
| Other Names | 2ED020I12FIXT 2ED020I12FXT SP000107512 |
| Operating Temperature | - |
| Number of Drivers | 2 |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Logic Voltage - VIL, VIH | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Type | Inverting |
| High Side Voltage - Max (Bootstrap) | 1200V |
| Gate Type | IGBT, N-Channel MOSFET |
| Driven Configuration | Half-Bridge |
| Detailed Description | Half-Bridge Gate Driver IC Inverting PG-DSO-18-2 |
| Current - Peak Output (Source, Sink) | 1A, 2A |
| Channel Type | Independent |
| Base Part Number | 2ED020I12-F |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all International Rectifier (Infineon Technologies) series electronic components. We have 5784 pcs of International Rectifier (Infineon Technologies)2ED020I12-F in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
