TLE7181EMXUMA1
International Rectifier (Infineon Technologies)
_medium.jpg){kind=logo}

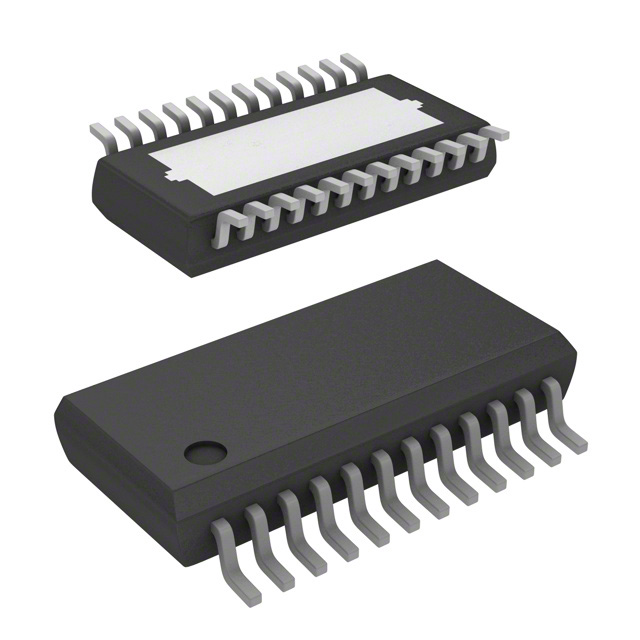

Images are for reference only.
See Product Specifications for product details.
Buy TLE7181EMXUMA1 with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy TLE7181EMXUMA1 with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload TLE7181EMXUMA1 Datasheet| Part Number | TLE7181EMXUMA1 |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Description | IC DRIVER N-BRIDGE 24SSOP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | TLE7181EMXUMA1 |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Product Category | PMIC - Gate Drivers |
| Description | IC DRIVER N-BRIDGE 24SSOP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 61145 pcs |
| Datasheet | TLE7181EMXUMA1.pdf |
| Voltage - Supply | 7 V ~ 34 V |
| Supplier Device Package | PG-SSOP-24 |
| Series | - |
| Rise / Fall Time (Typ) | 250ns, 200ns |
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-LSSOP (0.154", 3.90mm Width) Exposed Pad |
| Other Names | SP000628808 TLE7181EM TLE7181EM-ND TLE7181EMFUMA1 TLE7181EMXUMA1TR |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Number of Drivers | 4 |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Logic Voltage - VIL, VIH | 1V, 2V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 55V |
| Gate Type | N-Channel MOSFET |
| Driven Configuration | Half-Bridge |
| Detailed Description | Half-Bridge Gate Driver IC Non-Inverting PG-SSOP-24 |
| Current - Peak Output (Source, Sink) | - |
| Channel Type | Synchronous |
| Base Part Number | TLE7181 |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all International Rectifier (Infineon Technologies) series electronic components. We have 61145 pcs of International Rectifier (Infineon Technologies)TLE7181EMXUMA1 in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
