IRL80HS120
International Rectifier (Infineon Technologies)
_medium.jpg){kind=logo}

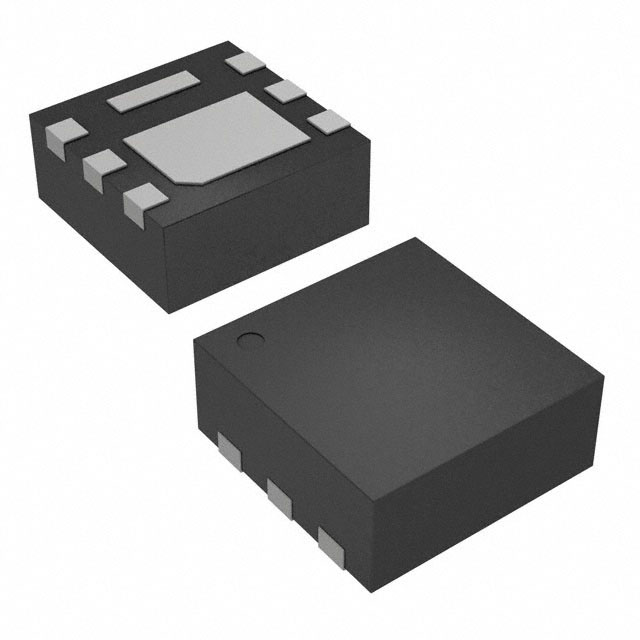

Images are for reference only.
See Product Specifications for product details.
Buy IRL80HS120 with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy IRL80HS120 with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload IRL80HS120 Datasheet| Part Number | IRL80HS120 |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Description | MOSFET N-CH 80V 12.5A 6PQFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | IRL80HS120 |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Product Category | Transistors - FETs, MOSFETs - Single |
| Description | MOSFET N-CH 80V 12.5A 6PQFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 150674 pcs |
| Datasheet | IRL80HS120.pdf |
| Vgs(th) (Max) @ Id | 2V @ 10µA |
| Vgs (Max) | ±20V |
| Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | 6-PQFN (2x2) |
| Series | - |
| Rds On (Max) @ Id, Vgs | 32 mOhm @ 7.5A, 10V |
| Power Dissipation (Max) | 11.5W (Tc) |
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-VDFN Exposed Pad |
| Other Names | IRL80HS120TR SP001592838 |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 540pF @ 25V |
| Gate Charge (Qg) (Max) @ Vgs | 7nC @ 4.5V |
| FET Type | N-Channel |
| FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Drain to Source Voltage (Vdss) | 80V |
| Detailed Description | N-Channel 80V 12.5A (Tc) 11.5W (Tc) Surface Mount 6-PQFN (2x2) |
| Current - Continuous Drain (Id) @ 25°C | 12.5A (Tc) |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all International Rectifier (Infineon Technologies) series electronic components. We have 150674 pcs of International Rectifier (Infineon Technologies)IRL80HS120 in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
