IR3553MTRPBF
International Rectifier (Infineon Technologies)
_medium.jpg){kind=logo}

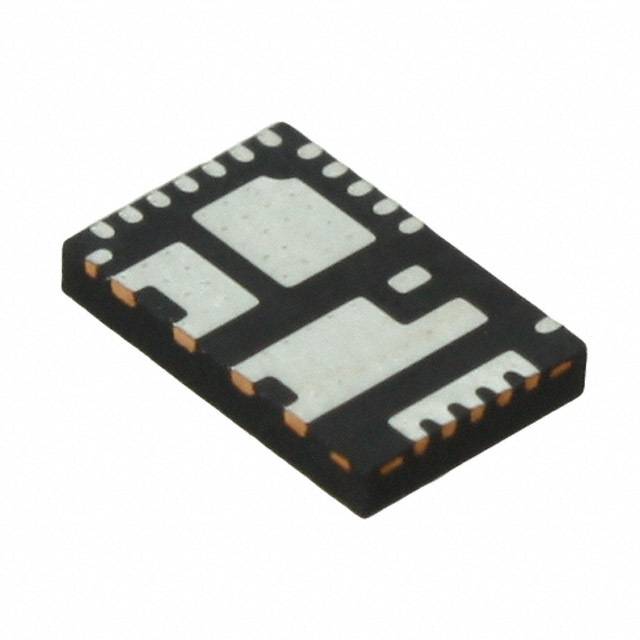

Images are for reference only.
See Product Specifications for product details.
Buy IR3553MTRPBF with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy IR3553MTRPBF with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload IR3553MTRPBF Datasheet| Part Number | IR3553MTRPBF |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Description | IC DRIVER GATE 40A PQFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | IR3553MTRPBF |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Product Category | PMIC - Full, Half-Bridge Drivers |
| Description | IC DRIVER GATE 40A PQFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 24580 pcs |
| Datasheet | IR3553MTRPBF.pdf |
| Voltage - Supply | 4.5 V ~ 7 V |
| Voltage - Load | 4.5 V ~ 15 V |
| Technology | Power MOSFET |
| Supplier Device Package | 25-PQFN (4x6) |
| Series | PowIRstage® |
| Rds On (Typ) | - |
| Packaging | Original-Reel® |
| Package / Case | 25-PowerVFQFN |
| Output Configuration | Half Bridge |
| Other Names | IR3553MTRPBFDKR |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Load Type | Inductive |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Interface | PWM |
| Features | Bootstrap Circuit, Diode Emulation, Status Flag |
| Fault Protection | Over Temperature, UVLO |
| Detailed Description | Half Bridge Driver Synchronous Buck Converters, Voltage Regulators Power MOSFET 25-PQFN (4x6) |
| Current - Peak Output | 60A |
| Current - Output / Channel | 40A |
| Base Part Number | IR3553MPBF |
| Applications | Synchronous Buck Converters, Voltage Regulators |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all International Rectifier (Infineon Technologies) series electronic components. We have 24580 pcs of International Rectifier (Infineon Technologies)IR3553MTRPBF in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
RFQ Email: sales@gfg-tx.com
RFQ Email: sales@gfg-tx.com
