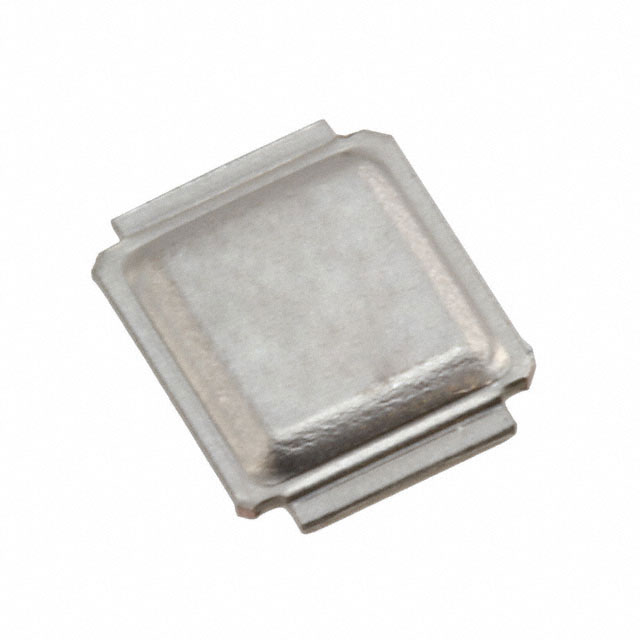

IRL6297SDTRPBF
International Rectifier (Infineon Technologies)
_medium.jpg){kind=logo}
Images are for reference only.
See Product Specifications for product details.
Buy IRL6297SDTRPBF with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy IRL6297SDTRPBF with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload IRL6297SDTRPBF Datasheet| Part Number | IRL6297SDTRPBF |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Description | MOSFET 2N-CH 20V 15A DIRECTFET |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | IRL6297SDTRPBF |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Product Category | Transistors - FETs, MOSFETs - Arrays |
| Description | MOSFET 2N-CH 20V 15A DIRECTFET |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 125863 pcs |
| Datasheet | IRL6297SDTRPBF.pdf |
| Vgs(th) (Max) @ Id | 1.1V @ 35µA |
| Supplier Device Package | DIRECTFET™ SA |
| Series | HEXFET® |
| Rds On (Max) @ Id, Vgs | 4.9 mOhm @ 15A, 4.5V |
| Power - Max | 1.7W |
| Packaging | Tape & Reel (TR) |
| Package / Case | DirectFET™ Isometric SA |
| Other Names | IRL6297SDTRPBF-ND IRL6297SDTRPBFTR SP001578724 |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 2245pF @ 10V |
| Gate Charge (Qg) (Max) @ Vgs | 54nC @ 10V |
| FET Type | 2 N-Channel (Dual) |
| FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 20V |
| Detailed Description | Mosfet Array 2 N-Channel (Dual) 20V 15A 1.7W Surface Mount DIRECTFET™ SA |
| Current - Continuous Drain (Id) @ 25°C | 15A |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all International Rectifier (Infineon Technologies) series electronic components. We have 125863 pcs of International Rectifier (Infineon Technologies)IRL6297SDTRPBF in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
