2EDN7523RXUMA1
International Rectifier (Infineon Technologies)
_medium.jpg){kind=logo}

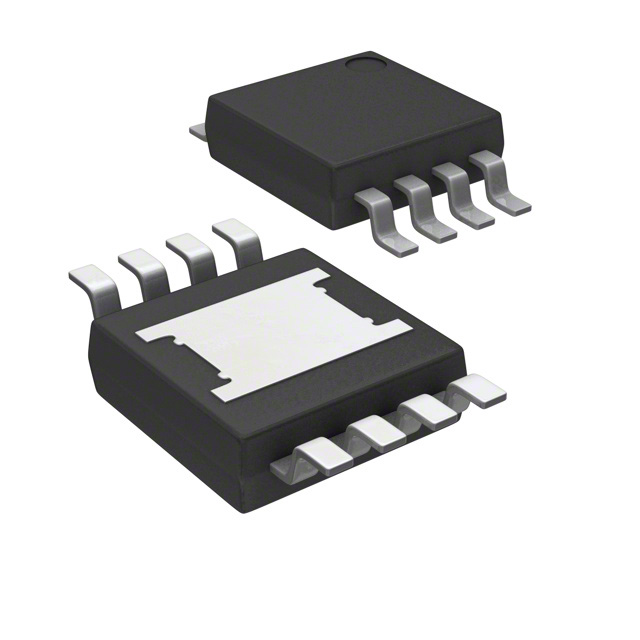

Images are for reference only.
See Product Specifications for product details.
Buy 2EDN7523RXUMA1 with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy 2EDN7523RXUMA1 with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload 2EDN7523RXUMA1 Datasheet| Part Number | 2EDN7523RXUMA1 |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Description | IC GATE DRVR 8TSSOP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | 2EDN7523RXUMA1 |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Product Category | PMIC - Gate Drivers |
| Description | IC GATE DRVR 8TSSOP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 96762 pcs |
| Datasheet | 2EDN7523RXUMA1.pdf |
| Voltage - Supply | 4.5 V ~ 20 V |
| Supplier Device Package | PG-TSSOP-8 |
| Series | EiceDriver™ |
| Rise / Fall Time (Typ) | 5.3ns, 4.5ns |
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad |
| Other Names | 2EDN7523RXUMA1-ND 2EDN7523RXUMA1TR SP001391098 |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Number of Drivers | 2 |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Logic Voltage - VIL, VIH | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Type | Inverting |
| Gate Type | N-Channel MOSFET |
| Driven Configuration | Low-Side |
| Detailed Description | Low-Side Gate Driver IC Inverting PG-TSSOP-8 |
| Current - Peak Output (Source, Sink) | 5A, 5A |
| Channel Type | Independent |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all International Rectifier (Infineon Technologies) series electronic components. We have 96762 pcs of International Rectifier (Infineon Technologies)2EDN7523RXUMA1 in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
