TLE9202EDXUMA1
International Rectifier (Infineon Technologies)
_medium.jpg){kind=logo}

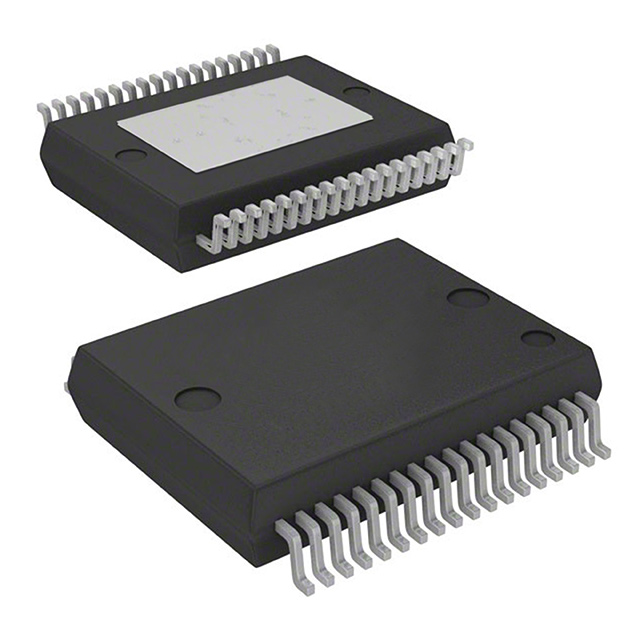

Images are for reference only.
See Product Specifications for product details.
Buy TLE9202EDXUMA1 with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy TLE9202EDXUMA1 with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload TLE9202EDXUMA1 Datasheet| Part Number | TLE9202EDXUMA1 |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Description | IC DRIVER H-BRIDGE DSO-36 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | TLE9202EDXUMA1 |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Product Category | PMIC - Full, Half-Bridge Drivers |
| Description | IC DRIVER H-BRIDGE DSO-36 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 24457 pcs |
| Datasheet | TLE9202EDXUMA1.pdf |
| Voltage - Supply | 2.9 V ~ 5.5 V |
| Voltage - Load | 5 V ~ 28 V |
| Technology | Power MOSFET |
| Supplier Device Package | PG-DSO-36-72 |
| Series | Automotive, AEC-Q100 |
| Rds On (Typ) | 100 mOhm LS, 100 mOhm HS |
| Packaging | Original-Reel® |
| Package / Case | 36-BFSOP (0.295", 7.50mm Width) Exposed Pad |
| Output Configuration | Half Bridge (2) |
| Other Names | TLE9202EDXUMA1DKR |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Load Type | Inductive |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Interface | SPI |
| Features | - |
| Fault Protection | Current Limiting, Over Temperature, Short Circuit, UVLO |
| Detailed Description | Half Bridge (2) Driver DC Motors, General Purpose Power MOSFET PG-DSO-36-72 |
| Current - Peak Output | - |
| Current - Output / Channel | 6A |
| Applications | DC Motors, General Purpose |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all International Rectifier (Infineon Technologies) series electronic components. We have 24457 pcs of International Rectifier (Infineon Technologies)TLE9202EDXUMA1 in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
