IR3101
International Rectifier (Infineon Technologies)
_medium.jpg){kind=logo}

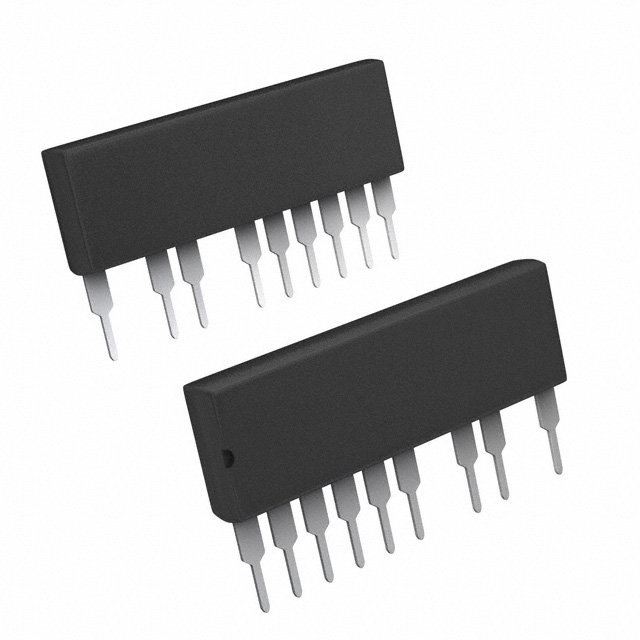

Images are for reference only.
See Product Specifications for product details.
Buy IR3101 with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy IR3101 with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload IR3101 Datasheet| Part Number | IR3101 |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Description | IC POWER MODULE 1.6A 500V 11-SIP |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | IR3101 |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Product Category | PMIC - Gate Drivers |
| Description | IC POWER MODULE 1.6A 500V 11-SIP |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 4113 pcs |
| Datasheet | IR3101.pdf |
| Voltage - Supply | 10 V ~ 20 V |
| Supplier Device Package | 11-SIP |
| Series | iMOTION™ |
| Rise / Fall Time (Typ) | - |
| Packaging | Tube |
| Package / Case | 11-SIP, 9 Leads |
| Other Names | *IR3101 SP001547722 |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Number of Drivers | 2 |
| Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Logic Voltage - VIL, VIH | 0.8V, 2.9V |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 500V |
| Gate Type | N-Channel MOSFET |
| Driven Configuration | Half-Bridge |
| Detailed Description | Half-Bridge Gate Driver IC Non-Inverting 11-SIP |
| Current - Peak Output (Source, Sink) | - |
| Channel Type | Independent |
| Base Part Number | IR3101 |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all International Rectifier (Infineon Technologies) series electronic components. We have 4113 pcs of International Rectifier (Infineon Technologies)IR3101 in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
