IRFH7936TR2PBF
International Rectifier (Infineon Technologies)
_medium.jpg){kind=logo}

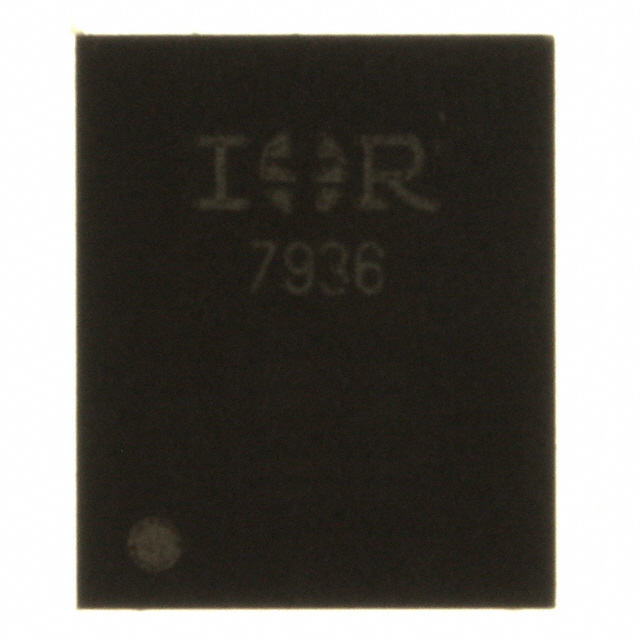

Images are for reference only.
See Product Specifications for product details.
Buy IRFH7936TR2PBF with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy IRFH7936TR2PBF with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload IRFH7936TR2PBF Datasheet| Part Number | IRFH7936TR2PBF |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Description | MOSFET N-CH 30V 20A PQFN56 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | IRFH7936TR2PBF |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Product Category | Transistors - FETs, MOSFETs - Single |
| Description | MOSFET N-CH 30V 20A PQFN56 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4409 pcs |
| Datasheet | IRFH7936TR2PBF.pdf |
| Vgs(th) (Max) @ Id | 2.35V @ 50µA |
| Vgs (Max) | ±20V |
| Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | 8-PQFN (5x6) |
| Series | HEXFET® |
| Rds On (Max) @ Id, Vgs | 4.8 mOhm @ 20A, 10V |
| Power Dissipation (Max) | 3.1W (Ta) |
| Packaging | Cut Tape (CT) |
| Package / Case | 8-PowerTDFN |
| Other Names | IRFH7936TR2PBFCT |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 2360pF @ 15V |
| Gate Charge (Qg) (Max) @ Vgs | 26nC @ 4.5V |
| FET Type | N-Channel |
| FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Drain to Source Voltage (Vdss) | 30V |
| Detailed Description | N-Channel 30V 20A (Ta), 54A (Tc) 3.1W (Ta) Surface Mount 8-PQFN (5x6) |
| Current - Continuous Drain (Id) @ 25°C | 20A (Ta), 54A (Tc) |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all International Rectifier (Infineon Technologies) series electronic components. We have 4409 pcs of International Rectifier (Infineon Technologies)IRFH7936TR2PBF in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
