IRG8P40N120KDPBF
International Rectifier (Infineon Technologies)
_medium.jpg){kind=logo}

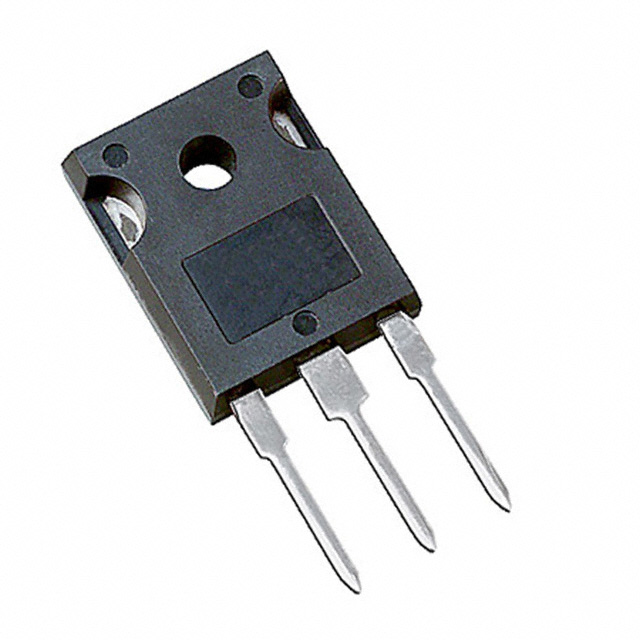

Images are for reference only.
See Product Specifications for product details.
Buy IRG8P40N120KDPBF with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy IRG8P40N120KDPBF with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload IRG8P40N120KDPBF Datasheet| Part Number | IRG8P40N120KDPBF |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Description | IGBT 1200V 60A 305W TO-247AC |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | IRG8P40N120KDPBF |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Product Category | Transistors - IGBTs - Single |
| Description | IGBT 1200V 60A 305W TO-247AC |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4244 pcs |
| Datasheet | IRG8P40N120KDPBF.pdf |
| Voltage - Collector Emitter Breakdown (Max) | 1200V |
| Vce(on) (Max) @ Vge, Ic | 2V @ 15V, 25A |
| Test Condition | 600V, 25A, 10 Ohm, 15V |
| Td (on/off) @ 25°C | 40ns/245ns |
| Switching Energy | 1.6mJ (on), 1.8mJ (off) |
| Supplier Device Package | TO-247AC |
| Series | - |
| Reverse Recovery Time (trr) | 80ns |
| Power - Max | 305W |
| Packaging | Tube |
| Package / Case | TO-247-3 |
| Other Names | SP001537700 |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Type | Standard |
| IGBT Type | - |
| Gate Charge | 240nC |
| Detailed Description | IGBT 1200V 60A 305W Through Hole TO-247AC |
| Current - Collector Pulsed (Icm) | 75A |
| Current - Collector (Ic) (Max) | 60A |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all International Rectifier (Infineon Technologies) series electronic components. We have 4244 pcs of International Rectifier (Infineon Technologies)IRG8P40N120KDPBF in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
