BTS550PE3146HKSA1
International Rectifier (Infineon Technologies)
_medium.jpg){kind=logo}

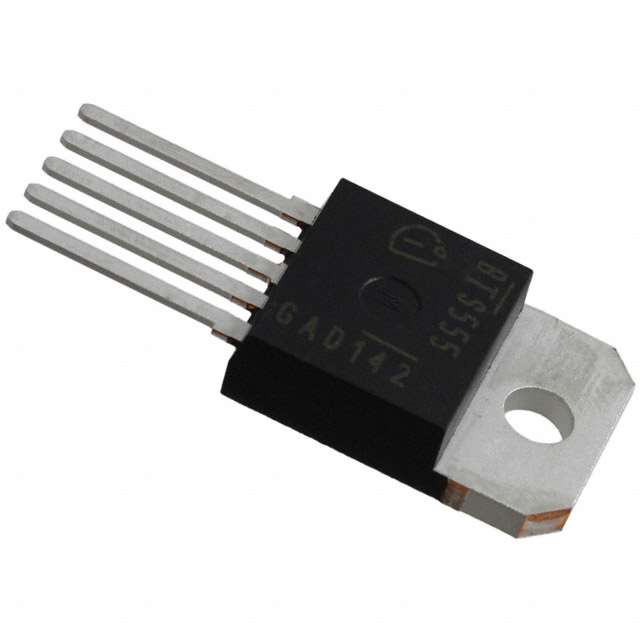

Images are for reference only.
See Product Specifications for product details.
Buy BTS550PE3146HKSA1 with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy BTS550PE3146HKSA1 with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload BTS550PE3146HKSA1 Datasheet| Part Number | BTS550PE3146HKSA1 |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Description | IC HIGH SIDE PWR SWITCH TO218-5 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | BTS550PE3146HKSA1 |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Product Category | PMIC - Power Distribution Switches, Load Drivers |
| Description | IC HIGH SIDE PWR SWITCH TO218-5 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4007 pcs |
| Datasheet | BTS550PE3146HKSA1.pdf |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Voltage - Load | 5 V ~ 34 V |
| Switch Type | General Purpose |
| Supplier Device Package | TO-218AB/5 |
| Series | PROFET® |
| Rds On (Typ) | 2.8 mOhm |
| Ratio - Input:Output | 1:1 |
| Packaging | Tube |
| Package / Case | TO-218-5 |
| Output Type | N-Channel |
| Output Configuration | High Side |
| Other Names | BTS550P E3146 BTS550P E3146-ND BTS550PE3146 SP000842750 |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Number of Outputs | 1 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Interface | On/Off |
| Input Type | Non-Inverting |
| Features | - |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage |
| Current - Output (Max) | 90A |
| Base Part Number | BTS550 |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all International Rectifier (Infineon Technologies) series electronic components. We have 4007 pcs of International Rectifier (Infineon Technologies)BTS550PE3146HKSA1 in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
