IRLH5030TR2PBF
International Rectifier (Infineon Technologies)
_medium.jpg){kind=logo}

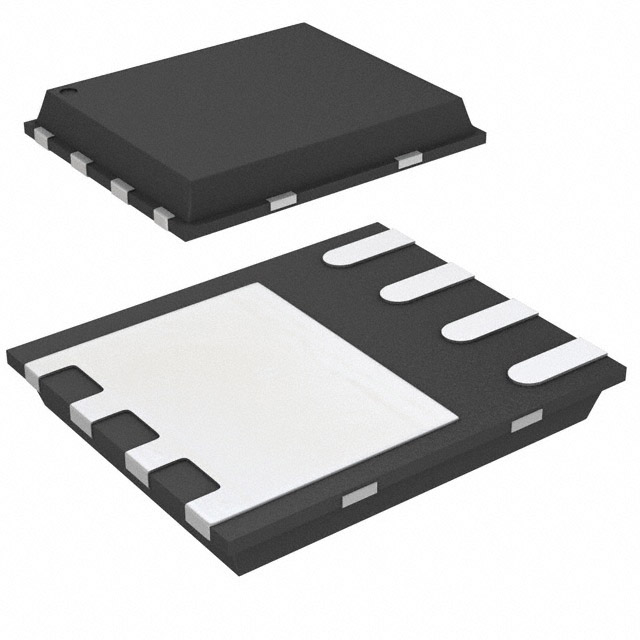

Images are for reference only.
See Product Specifications for product details.
Buy IRLH5030TR2PBF with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy IRLH5030TR2PBF with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload IRLH5030TR2PBF Datasheet| Part Number | IRLH5030TR2PBF |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Description | MOSFET N-CH 100V 13A 8PQFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | IRLH5030TR2PBF |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Product Category | Transistors - FETs, MOSFETs - Single |
| Description | MOSFET N-CH 100V 13A 8PQFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5895 pcs |
| Datasheet | IRLH5030TR2PBF.pdf |
| Vgs(th) (Max) @ Id | 2.5V @ 150µA |
| Vgs (Max) | ±16V |
| Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | PQFN (5x6) Single Die |
| Series | HEXFET® |
| Rds On (Max) @ Id, Vgs | 9 mOhm @ 50A, 10V |
| Power Dissipation (Max) | 3.6W (Ta), 156W (Tc) |
| Packaging | Cut Tape (CT) |
| Package / Case | 8-PowerVDFN |
| Other Names | IRLH5030TR2PBFCT |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 5185pF @ 50V |
| Gate Charge (Qg) (Max) @ Vgs | 94nC @ 10V |
| FET Type | N-Channel |
| FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Drain to Source Voltage (Vdss) | 100V |
| Detailed Description | N-Channel 100V 13A (Ta), 100A (Tc) 3.6W (Ta), 156W (Tc) Surface Mount PQFN (5x6) Single Die |
| Current - Continuous Drain (Id) @ 25°C | 13A (Ta), 100A (Tc) |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all International Rectifier (Infineon Technologies) series electronic components. We have 5895 pcs of International Rectifier (Infineon Technologies)IRLH5030TR2PBF in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
