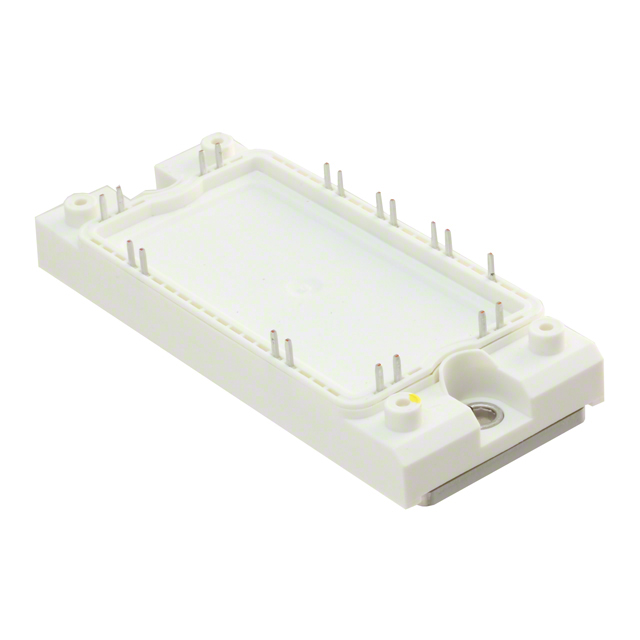

DDB6U134N16RRBOSA1
International Rectifier (Infineon Technologies)
_medium.jpg){kind=logo}
Images are for reference only.
See Product Specifications for product details.
Buy DDB6U134N16RRBOSA1 with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy DDB6U134N16RRBOSA1 with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload DDB6U134N16RRBOSA1 Datasheet| Part Number | DDB6U134N16RRBOSA1 |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Description | IGBT MODULE 1600V 134A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | DDB6U134N16RRBOSA1 |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Product Category | Transistors - IGBTs - Modules |
| Description | IGBT MODULE 1600V 134A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1231 pcs |
| Datasheet | DDB6U134N16RRBOSA1.pdf |
| Voltage - Collector Emitter Breakdown (Max) | 1600V |
| Vce(on) (Max) @ Vge, Ic | 2.75V @ 15V, 70A |
| Supplier Device Package | Module |
| Series | - |
| Power - Max | 500W |
| Package / Case | Module |
| Other Names | DDB6U134N16RR DDB6U134N16RR-ND SP000101744 |
| Operating Temperature | 150°C (TJ) |
| NTC Thermistor | Yes |
| Mounting Type | Chassis Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Cies) @ Vce | 5.1nF @ 25V |
| Input | Standard |
| IGBT Type | NPT |
| Detailed Description | IGBT Module NPT Single 1600V 70A 500W Chassis Mount Module |
| Current - Collector Cutoff (Max) | 500µA |
| Current - Collector (Ic) (Max) | 70A |
| Configuration | Single |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all International Rectifier (Infineon Technologies) series electronic components. We have 1231 pcs of International Rectifier (Infineon Technologies)DDB6U134N16RRBOSA1 in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
