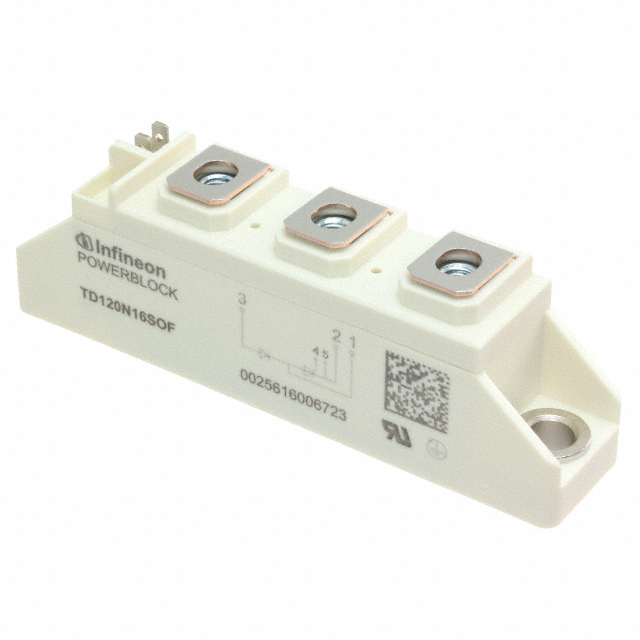

TD120N16SOFHPSA1
International Rectifier (Infineon Technologies)
_medium.jpg){kind=logo}
Images are for reference only.
See Product Specifications for product details.
Buy TD120N16SOFHPSA1 with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy TD120N16SOFHPSA1 with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload TD120N16SOFHPSA1 Datasheet| Part Number | TD120N16SOFHPSA1 |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Description | THYRISTOR MODULE 1600V 120A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | TD120N16SOFHPSA1 |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Product Category | Thyristors - SCRs - Modules |
| Description | THYRISTOR MODULE 1600V 120A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4108 pcs |
| Datasheet | TD120N16SOFHPSA1.pdf |
| Voltage - Off State | 1.6kV |
| Voltage - Gate Trigger (Vgt) (Max) | 2.5V |
| Structure | Series Connection - All SCRs |
| Series | - |
| Packaging | Bulk |
| Package / Case | Module |
| Other Names | SP001272854 TD120N16SOF TD120N16SOF-ND |
| Operating Temperature | 130°C (TJ) |
| Number of SCRs, Diodes | 2 SCRs |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Detailed Description | SCR Module 1.6kV 190A Series Connection - All SCRs Surface Mount Module |
| Current - On State (It (RMS)) (Max) | 190A |
| Current - On State (It (AV)) (Max) | 119A |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | - |
| Current - Hold (Ih) (Max) | 250mA |
| Current - Gate Trigger (Igt) (Max) | 100mA |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all International Rectifier (Infineon Technologies) series electronic components. We have 4108 pcs of International Rectifier (Infineon Technologies)TD120N16SOFHPSA1 in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
