IKY40N120CS6XKSA1
International Rectifier (Infineon Technologies)
_medium.jpg){kind=logo}

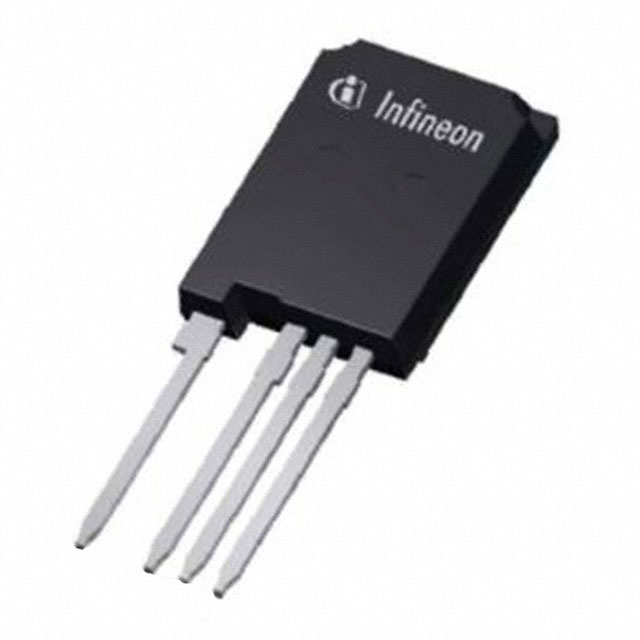

Images are for reference only.
See Product Specifications for product details.
Buy IKY40N120CS6XKSA1 with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy IKY40N120CS6XKSA1 with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload IKY40N120CS6XKSA1 Datasheet| Part Number | IKY40N120CS6XKSA1 |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Description | IGBT 1200V 40A TO247PLUS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | IKY40N120CS6XKSA1 |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Product Category | Transistors - IGBTs - Single |
| Description | IGBT 1200V 40A TO247PLUS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 9891 pcs |
| Datasheet | IKY40N120CS6XKSA1.pdf |
| Voltage - Collector Emitter Breakdown (Max) | 1200V |
| Vce(on) (Max) @ Vge, Ic | 2.15V @ 15V, 40A |
| Test Condition | 600V, 40A, 9 Ohm, 15V |
| Td (on/off) @ 25°C | 27ns/315ns |
| Switching Energy | 1.45mJ (on), 1.55mJ (off) |
| Supplier Device Package | PG-TO247-4-2 |
| Series | TrenchStop™ |
| Reverse Recovery Time (trr) | 255ns |
| Power - Max | 500W |
| Packaging | Tube |
| Package / Case | TO-247-4 |
| Other Names | SP001666620 |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Type | Standard |
| IGBT Type | Trench Field Stop |
| Gate Charge | 285nC |
| Detailed Description | IGBT Trench Field Stop 1200V 80A 500W Through Hole PG-TO247-4-2 |
| Current - Collector Pulsed (Icm) | 160A |
| Current - Collector (Ic) (Max) | 80A |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all International Rectifier (Infineon Technologies) series electronic components. We have 9891 pcs of International Rectifier (Infineon Technologies)IKY40N120CS6XKSA1 in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
