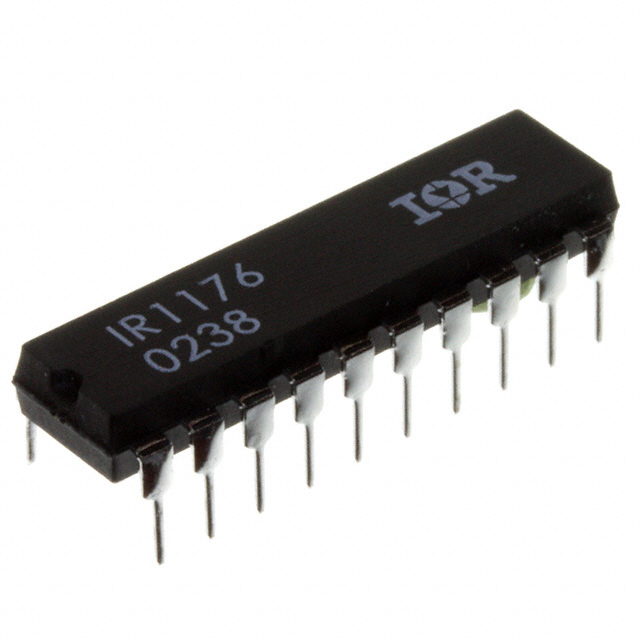

IR1176
International Rectifier (Infineon Technologies)
_medium.jpg){kind=logo}
Images are for reference only.
See Product Specifications for product details.
Buy IR1176 with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy IR1176 with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload IR1176 Datasheet| Part Number | IR1176 |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Description | IC DRIVER SYNC 5V 4A 20-DIP |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | IR1176 |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Product Category | PMIC - Gate Drivers |
| Description | IC DRIVER SYNC 5V 4A 20-DIP |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 5391 pcs |
| Datasheet | IR1176.pdf |
| Voltage - Supply | 4 V ~ 5.25 V |
| Supplier Device Package | 20-DIP |
| Series | - |
| Rise / Fall Time (Typ) | 20ns, 20ns |
| Packaging | Tube |
| Package / Case | 20-DIP (0.300", 7.62mm) |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Number of Drivers | 1 |
| Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Logic Voltage - VIL, VIH | - |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Input Type | Non-Inverting |
| Gate Type | N-Channel MOSFET |
| Driven Configuration | Low-Side |
| Detailed Description | Low-Side Gate Driver IC Non-Inverting 20-DIP |
| Current - Peak Output (Source, Sink) | 4A, 4A |
| Channel Type | Single |
| Base Part Number | IR1176 |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all International Rectifier (Infineon Technologies) series electronic components. We have 5391 pcs of International Rectifier (Infineon Technologies)IR1176 in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
