TLE7209-2R
International Rectifier (Infineon Technologies)
_medium.jpg){kind=logo}

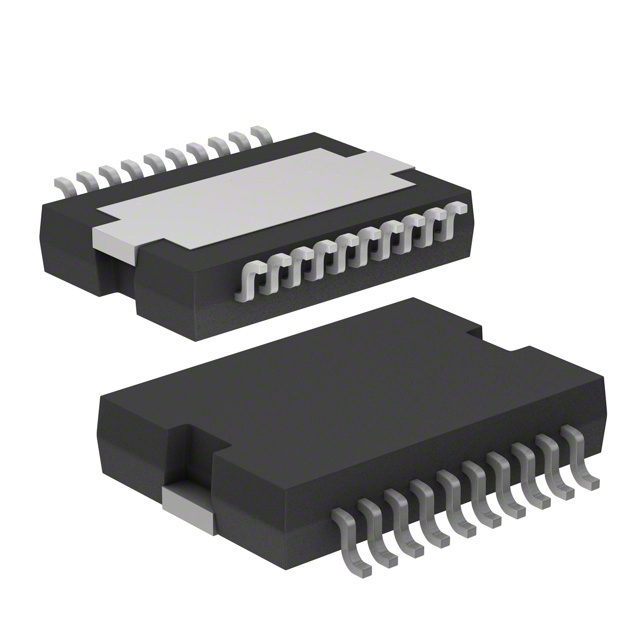

Images are for reference only.
See Product Specifications for product details.
Buy TLE7209-2R with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy TLE7209-2R with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload TLE7209-2R Datasheet| Part Number | TLE7209-2R |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Description | IC MOTOR DRIVER SPI 20DSO |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | TLE7209-2R |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Product Category | PMIC - Motor Drivers, Controllers |
| Description | IC MOTOR DRIVER SPI 20DSO |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4312 pcs |
| Datasheet | TLE7209-2R.pdf |
| Voltage - Supply | 5 V ~ 28 V |
| Voltage - Load | 5 V ~ 28 V |
| Technology | CMOS |
| Supplier Device Package | PG-DSO-20-65 |
| Step Resolution | - |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-PowerSOIC (0.433", 11.00mm Width) |
| Output Configuration | Half Bridge (2) |
| Other Names | SP000014748 SP000294312 SP000705014 TLE72092RCUMA2 TLE72092RNT TLE72092RT TLE72092RXT |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Motor Type - Stepper | - |
| Motor Type - AC, DC | Brushed DC |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Interface | SPI |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Detailed Description | Motor Driver CMOS SPI PG-DSO-20-65 |
| Current - Output | 5A |
| Base Part Number | TLE7209 |
| Applications | General Purpose |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all International Rectifier (Infineon Technologies) series electronic components. We have 4312 pcs of International Rectifier (Infineon Technologies)TLE7209-2R in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
