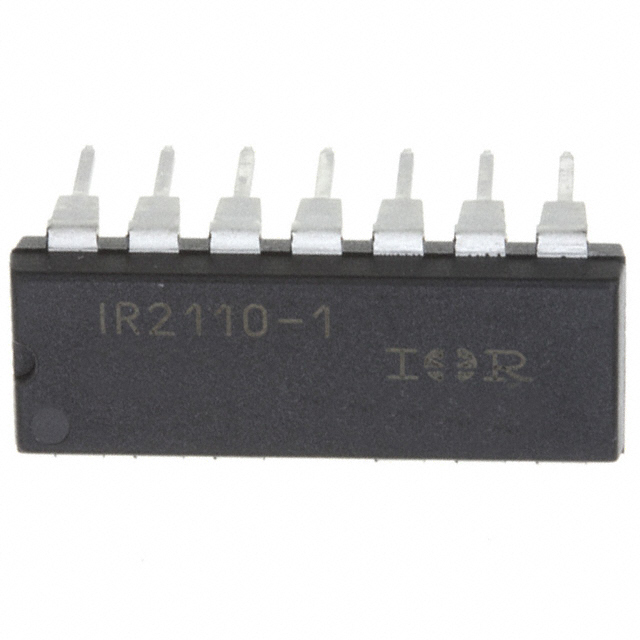

IR2110-1PBF
International Rectifier (Infineon Technologies)
_medium.jpg){kind=logo}
Images are for reference only.
See Product Specifications for product details.
Buy IR2110-1PBF with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy IR2110-1PBF with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload IR2110-1PBF Datasheet| Part Number | IR2110-1PBF |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Description | IC DRIVER HIGH/LOW SID 14DIP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | IR2110-1PBF |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Product Category | PMIC - Gate Drivers |
| Description | IC DRIVER HIGH/LOW SID 14DIP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4896 pcs |
| Datasheet | IR2110-1PBF.pdf |
| Voltage - Supply | 3.3 V ~ 20 V |
| Supplier Device Package | 14-PDIP |
| Series | - |
| Rise / Fall Time (Typ) | 25ns, 17ns |
| Packaging | Tube |
| Package / Case | 14-DIP (0.300", 7.62mm), 13 Leads |
| Other Names | *IR2110-1PBF |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Number of Drivers | 2 |
| Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Logic Voltage - VIL, VIH | 6V, 9.5V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 500V |
| Gate Type | IGBT, N-Channel MOSFET |
| Driven Configuration | Half-Bridge |
| Detailed Description | Half-Bridge Gate Driver IC Non-Inverting 14-PDIP |
| Current - Peak Output (Source, Sink) | 2A, 2A |
| Channel Type | Independent |
| Base Part Number | IR2110-1PBF |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all International Rectifier (Infineon Technologies) series electronic components. We have 4896 pcs of International Rectifier (Infineon Technologies)IR2110-1PBF in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
