IPG20N06S3L-23
International Rectifier (Infineon Technologies)
_medium.jpg){kind=logo}

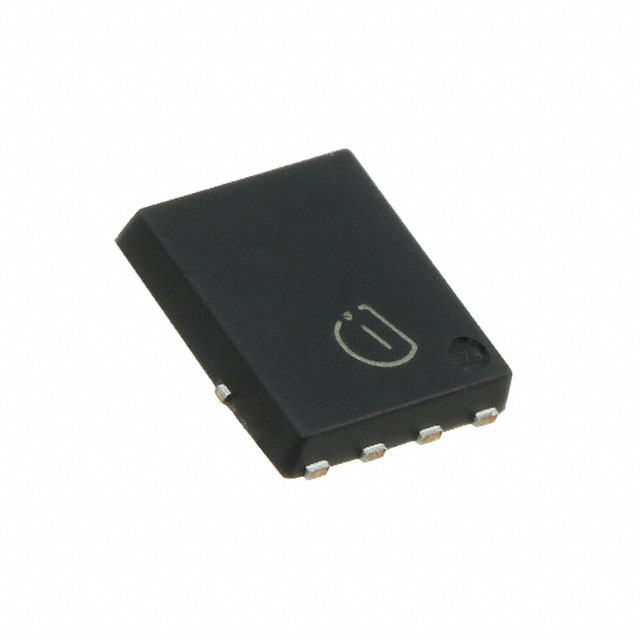

Images are for reference only.
See Product Specifications for product details.
Buy IPG20N06S3L-23 with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy IPG20N06S3L-23 with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload IPG20N06S3L-23 Datasheet| Part Number | IPG20N06S3L-23 |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Description | MOSFET 2N-CH 55V 20A TDSON-8 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | IPG20N06S3L-23 |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Product Category | Transistors - FETs, MOSFETs - Arrays |
| Description | MOSFET 2N-CH 55V 20A TDSON-8 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4622 pcs |
| Datasheet | IPG20N06S3L-23.pdf |
| Vgs(th) (Max) @ Id | 2.2V @ 20µA |
| Supplier Device Package | PG-TDSON-8-4 |
| Series | OptiMOS™ |
| Rds On (Max) @ Id, Vgs | 23 mOhm @ 16A, 10V |
| Power - Max | 45W |
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerVDFN |
| Other Names | SP000396304 |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 2950pF @ 25V |
| Gate Charge (Qg) (Max) @ Vgs | 42nC @ 10V |
| FET Type | 2 N-Channel (Dual) |
| FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 55V |
| Detailed Description | Mosfet Array 2 N-Channel (Dual) 55V 20A 45W Surface Mount PG-TDSON-8-4 |
| Current - Continuous Drain (Id) @ 25°C | 20A |
| Base Part Number | *PG20N06 |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all International Rectifier (Infineon Technologies) series electronic components. We have 4622 pcs of International Rectifier (Infineon Technologies)IPG20N06S3L-23 in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
