CHL8550CRT
International Rectifier (Infineon Technologies)
_medium.jpg){kind=logo}

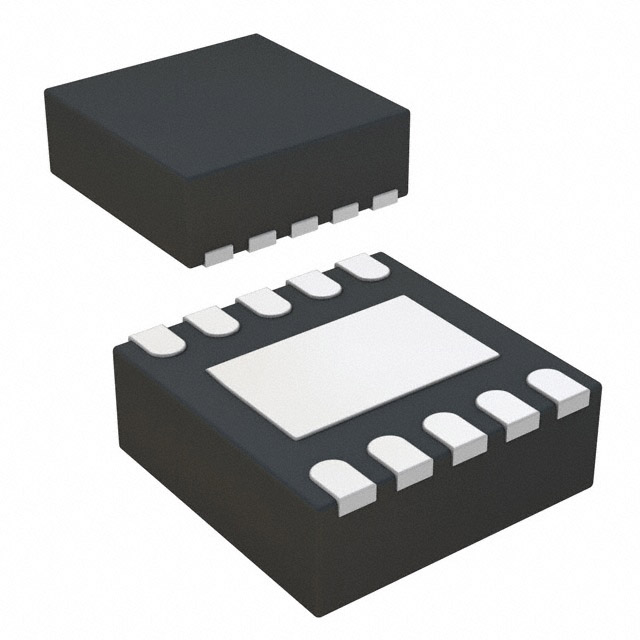

Images are for reference only.
See Product Specifications for product details.
Buy CHL8550CRT with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy CHL8550CRT with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload CHL8550CRT Datasheet| Part Number | CHL8550CRT |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Description | IC GATE DRVR HI/LOW SIDE 10DFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | CHL8550CRT |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Product Category | PMIC - Gate Drivers |
| Description | IC GATE DRVR HI/LOW SIDE 10DFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5628 pcs |
| Datasheet | CHL8550CRT.pdf |
| Voltage - Supply | 4.5 V ~ 5.5 V |
| Supplier Device Package | 10-DFN (3x3) |
| Series | - |
| Rise / Fall Time (Typ) | 10ns, 8ns |
| Packaging | Cut Tape (CT) |
| Package / Case | 10-VFDFN Exposed Pad |
| Other Names | CHL8550CRTCT |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Number of Drivers | 2 |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Logic Voltage - VIL, VIH | 0.8V, 1V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 35V |
| Gate Type | N-Channel MOSFET |
| Driven Configuration | Half-Bridge |
| Detailed Description | Half-Bridge Gate Driver IC Non-Inverting 10-DFN (3x3) |
| Current - Peak Output (Source, Sink) | 2A, 2A |
| Channel Type | Synchronous |
| Base Part Number | CHL8550CRT |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all International Rectifier (Infineon Technologies) series electronic components. We have 5628 pcs of International Rectifier (Infineon Technologies)CHL8550CRT in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
