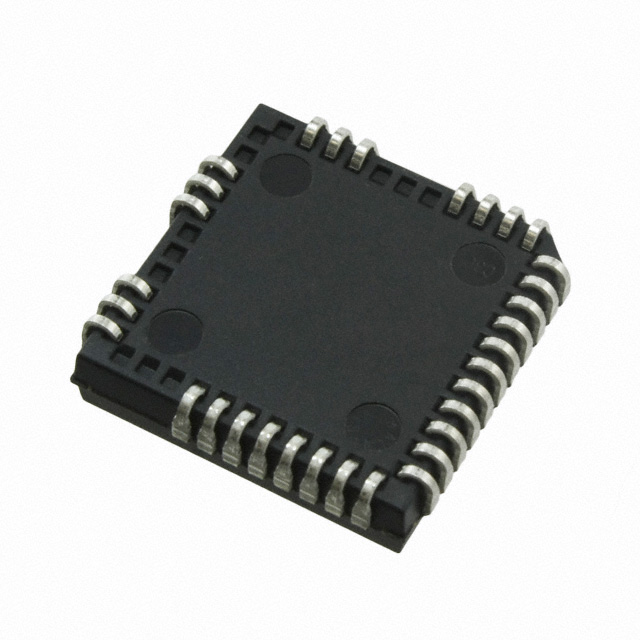

IR2233JTR
International Rectifier (Infineon Technologies)
_medium.jpg){kind=logo}
Images are for reference only.
See Product Specifications for product details.
Buy IR2233JTR with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy IR2233JTR with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload IR2233JTR Datasheet| Part Number | IR2233JTR |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Description | IC DRIVER 3-PHASE BRIDGE 44-PLCC |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | IR2233JTR |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Product Category | PMIC - Gate Drivers |
| Description | IC DRIVER 3-PHASE BRIDGE 44-PLCC |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 5319 pcs |
| Datasheet | IR2233JTR.pdf |
| Voltage - Supply | 10 V ~ 20 V |
| Supplier Device Package | 44-PLCC, 32 Leads (16.58x16.58) |
| Series | - |
| Rise / Fall Time (Typ) | 90ns, 40ns |
| Packaging | Tape & Reel (TR) |
| Package / Case | 44-LCC (J-Lead), 32 Leads |
| Operating Temperature | 125°C (TJ) |
| Number of Drivers | 6 |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Logic Voltage - VIL, VIH | 0.8V, 2V |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Input Type | Inverting |
| High Side Voltage - Max (Bootstrap) | 1200V |
| Gate Type | IGBT, N-Channel MOSFET |
| Driven Configuration | Half-Bridge |
| Detailed Description | Half-Bridge Gate Driver IC Inverting 44-PLCC, 32 Leads (16.58x16.58) |
| Current - Peak Output (Source, Sink) | 250mA, 500mA |
| Channel Type | 3-Phase |
| Base Part Number | IR2233J |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all International Rectifier (Infineon Technologies) series electronic components. We have 5319 pcs of International Rectifier (Infineon Technologies)IR2233JTR in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
