IRSM808-105MH
International Rectifier (Infineon Technologies)
_medium.jpg){kind=logo}

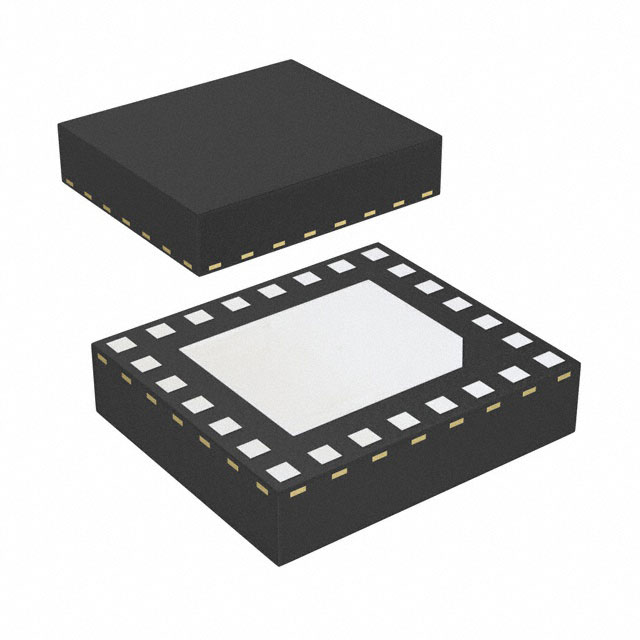

Images are for reference only.
See Product Specifications for product details.
Buy IRSM808-105MH with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy IRSM808-105MH with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload IRSM808-105MH Datasheet| Part Number | IRSM808-105MH |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Description | IC MOTOR DRIVER 500V QFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | IRSM808-105MH |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Product Category | PMIC - Full, Half-Bridge Drivers |
| Description | IC MOTOR DRIVER 500V QFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 41113 pcs |
| Datasheet | IRSM808-105MH.pdf |
| Voltage - Supply | 13.5 V ~ 16.5 V |
| Voltage - Load | 400V (Max) |
| Technology | UMOS |
| Supplier Device Package | 31-PQFN (8x9) |
| Series | µIPM™ |
| Rds On (Typ) | 580 mOhm |
| Packaging | Tray |
| Package / Case | 31-PowerVQFN |
| Output Configuration | Half Bridge |
| Other Names | SP001549046 |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Load Type | Inductive |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Interface | Logic |
| Features | Bootstrap Circuit |
| Fault Protection | UVLO |
| Detailed Description | Half Bridge Driver AC Motors UMOS 31-PQFN (8x9) |
| Current - Peak Output | - |
| Current - Output / Channel | 10A |
| Applications | AC Motors |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all International Rectifier (Infineon Technologies) series electronic components. We have 41113 pcs of International Rectifier (Infineon Technologies)IRSM808-105MH in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
