BSC072N03LDGATMA1
International Rectifier (Infineon Technologies)
_medium.jpg){kind=logo}

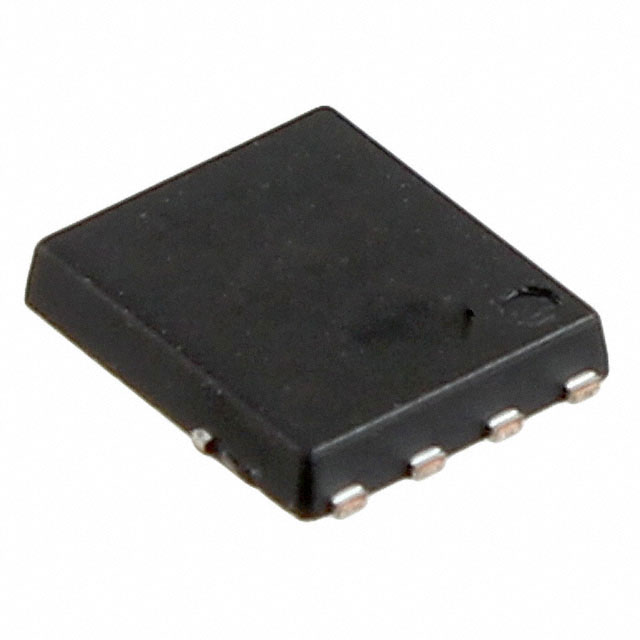

Images are for reference only.
See Product Specifications for product details.
Buy BSC072N03LDGATMA1 with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy BSC072N03LDGATMA1 with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload BSC072N03LDGATMA1 Datasheet| Part Number | BSC072N03LDGATMA1 |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Description | MOSFET 2N-CH 30V 11.5A 8TDSON |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | BSC072N03LDGATMA1 |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Product Category | Transistors - FETs, MOSFETs - Arrays |
| Description | MOSFET 2N-CH 30V 11.5A 8TDSON |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 90044 pcs |
| Datasheet | BSC072N03LDGATMA1.pdf |
| Vgs(th) (Max) @ Id | 2.2V @ 250µA |
| Supplier Device Package | PG-TDSON-8 Dual |
| Series | OptiMOS™ |
| Rds On (Max) @ Id, Vgs | 7.2 mOhm @ 20A, 10V |
| Power - Max | 57W |
| Packaging | Original-Reel® |
| Package / Case | 8-PowerVDFN |
| Other Names | BSC072N03LD GDKR BSC072N03LD GDKR-ND BSC072N03LDGATMA1DKR |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 3500pF @ 15V |
| Gate Charge (Qg) (Max) @ Vgs | 41nC @ 10V |
| FET Type | 2 N-Channel (Dual) |
| FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 30V |
| Detailed Description | Mosfet Array 2 N-Channel (Dual) 30V 11.5A 57W Surface Mount PG-TDSON-8 Dual |
| Current - Continuous Drain (Id) @ 25°C | 11.5A |
| Base Part Number | BSC072N03 |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all International Rectifier (Infineon Technologies) series electronic components. We have 90044 pcs of International Rectifier (Infineon Technologies)BSC072N03LDGATMA1 in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
