BSB015N04NX3GXUMA1
International Rectifier (Infineon Technologies)
_medium.jpg){kind=logo}

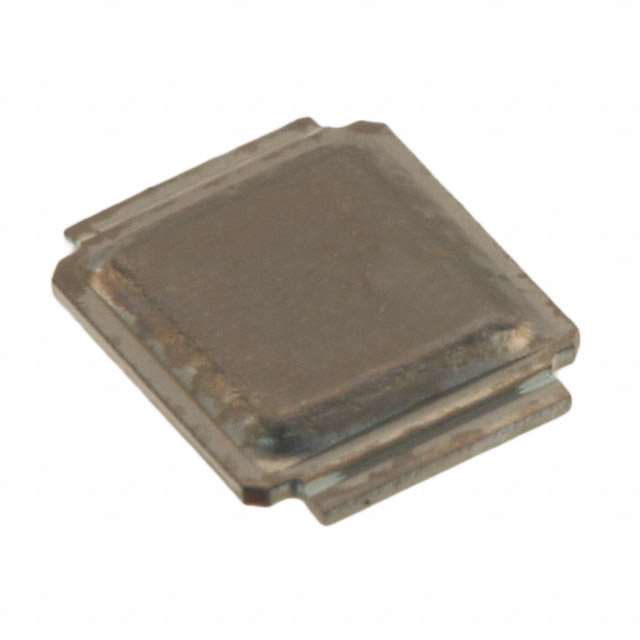

Images are for reference only.
See Product Specifications for product details.
Buy BSB015N04NX3GXUMA1 with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy BSB015N04NX3GXUMA1 with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload BSB015N04NX3GXUMA1 Datasheet| Part Number | BSB015N04NX3GXUMA1 |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Description | MOSFET N-CH 40V 180A 2WDSON |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | BSB015N04NX3GXUMA1 |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Product Category | Transistors - FETs, MOSFETs - Single |
| Description | MOSFET N-CH 40V 180A 2WDSON |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 58691 pcs |
| Datasheet | BSB015N04NX3GXUMA1.pdf |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Vgs (Max) | ±20V |
| Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | MG-WDSON-2, CanPAK M™ |
| Series | OptiMOS™ |
| Rds On (Max) @ Id, Vgs | 1.5 mOhm @ 30A, 10V |
| Power Dissipation (Max) | 2.8W (Ta), 89W (Tc) |
| Packaging | Cut Tape (CT) |
| Package / Case | 3-WDSON |
| Other Names | BSB015N04NX3 GCT BSB015N04NX3 GCT-ND BSB015N04NX3GXUMA1CT |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 12000pF @ 20V |
| Gate Charge (Qg) (Max) @ Vgs | 142nC @ 10V |
| FET Type | N-Channel |
| FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Drain to Source Voltage (Vdss) | 40V |
| Detailed Description | N-Channel 40V 36A (Ta), 180A (Tc) 2.8W (Ta), 89W (Tc) Surface Mount MG-WDSON-2, CanPAK M™ |
| Current - Continuous Drain (Id) @ 25°C | 36A (Ta), 180A (Tc) |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all International Rectifier (Infineon Technologies) series electronic components. We have 58691 pcs of International Rectifier (Infineon Technologies)BSB015N04NX3GXUMA1 in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
