IRFPS3815PBF
International Rectifier (Infineon Technologies)
_medium.jpg){kind=logo}

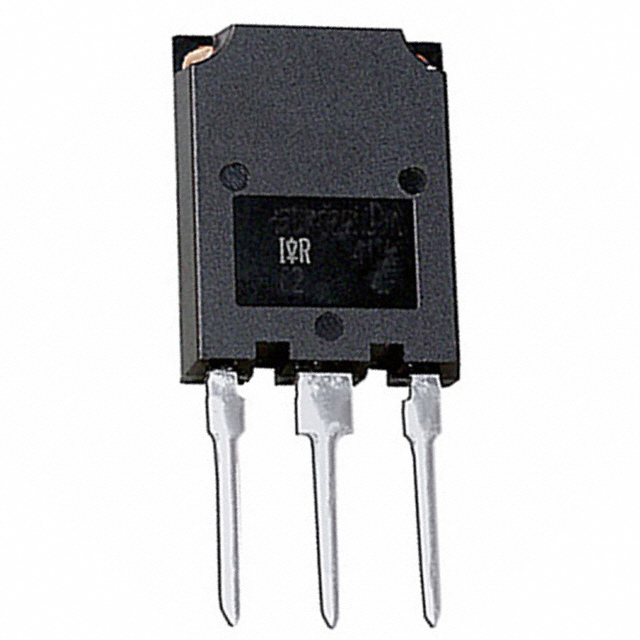

Images are for reference only.
See Product Specifications for product details.
Buy IRFPS3815PBF with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy IRFPS3815PBF with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload IRFPS3815PBF Datasheet| Part Number | IRFPS3815PBF |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Description | MOSFET N-CH 150V 105A SUPER247 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | IRFPS3815PBF |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Product Category | Transistors - FETs, MOSFETs - Single |
| Description | MOSFET N-CH 150V 105A SUPER247 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 28016 pcs |
| Datasheet | IRFPS3815PBF.pdf |
| Vgs(th) (Max) @ Id | 5V @ 250µA |
| Vgs (Max) | ±30V |
| Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | SUPER-247 (TO-274AA) |
| Series | HEXFET® |
| Rds On (Max) @ Id, Vgs | 15 mOhm @ 63A, 10V |
| Power Dissipation (Max) | 441W (Tc) |
| Packaging | Bulk |
| Package / Case | TO-274AA |
| Other Names | *IRFPS3815PBF SP001556840 |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 6810pF @ 25V |
| Gate Charge (Qg) (Max) @ Vgs | 390nC @ 10V |
| FET Type | N-Channel |
| FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Drain to Source Voltage (Vdss) | 150V |
| Detailed Description | N-Channel 150V 105A (Tc) 441W (Tc) Through Hole SUPER-247 (TO-274AA) |
| Current - Continuous Drain (Id) @ 25°C | 105A (Tc) |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all International Rectifier (Infineon Technologies) series electronic components. We have 28016 pcs of International Rectifier (Infineon Technologies)IRFPS3815PBF in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
