IRF5806TRPBF
International Rectifier (Infineon Technologies)
_medium.jpg){kind=logo}

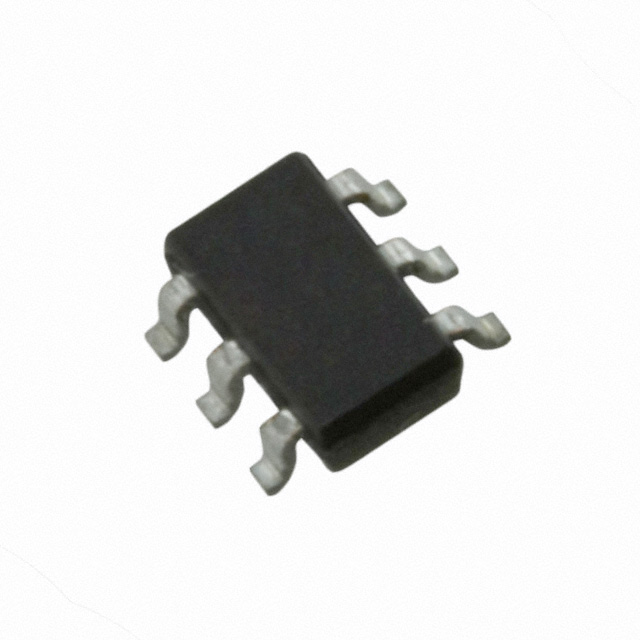

Images are for reference only.
See Product Specifications for product details.
Buy IRF5806TRPBF with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy IRF5806TRPBF with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload IRF5806TRPBF Datasheet| Part Number | IRF5806TRPBF |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Description | MOSFET P-CH 20V 4A 6-TSOP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | IRF5806TRPBF |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Product Category | Transistors - FETs, MOSFETs - Single |
| Description | MOSFET P-CH 20V 4A 6-TSOP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 311720 pcs |
| Datasheet | IRF5806TRPBF.pdf |
| Vgs(th) (Max) @ Id | 1.2V @ 250µA |
| Vgs (Max) | ±20V |
| Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | Micro6™(TSOP-6) |
| Series | HEXFET® |
| Rds On (Max) @ Id, Vgs | 86 mOhm @ 4A, 4.5V |
| Power Dissipation (Max) | 2W (Ta) |
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-23-6 Thin, TSOT-23-6 |
| Other Names | IRF5806TRPBF-ND IRF5806TRPBFTR SP001576892 |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 594pF @ 15V |
| Gate Charge (Qg) (Max) @ Vgs | 11.4nC @ 4.5V |
| FET Type | P-Channel |
| FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4.5V |
| Drain to Source Voltage (Vdss) | 20V |
| Detailed Description | P-Channel 20V 4A (Ta) 2W (Ta) Surface Mount Micro6™(TSOP-6) |
| Current - Continuous Drain (Id) @ 25°C | 4A (Ta) |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all International Rectifier (Infineon Technologies) series electronic components. We have 311720 pcs of International Rectifier (Infineon Technologies)IRF5806TRPBF in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
