IRFZ46NPBF
International Rectifier (Infineon Technologies)
_medium.jpg){kind=logo}

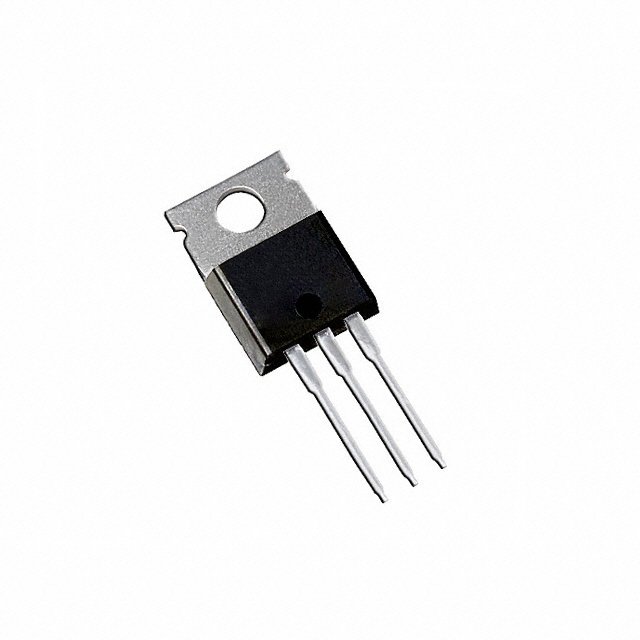

Images are for reference only.
See Product Specifications for product details.
Buy IRFZ46NPBF with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy IRFZ46NPBF with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload IRFZ46NPBF Datasheet| Part Number | IRFZ46NPBF |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Description | MOSFET N-CH 55V 53A TO-220AB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | IRFZ46NPBF |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Product Category | Transistors - FETs, MOSFETs - Single |
| Description | MOSFET N-CH 55V 53A TO-220AB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 108555 pcs |
| Datasheet | IRFZ46NPBF.pdf |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Vgs (Max) | ±20V |
| Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | TO-220AB |
| Series | HEXFET® |
| Rds On (Max) @ Id, Vgs | 16.5 mOhm @ 28A, 10V |
| Power Dissipation (Max) | 107W (Tc) |
| Packaging | Tube |
| Package / Case | TO-220-3 |
| Other Names | *IRFZ46NPBF SP001571842 |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 1696pF @ 25V |
| Gate Charge (Qg) (Max) @ Vgs | 72nC @ 10V |
| FET Type | N-Channel |
| FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Drain to Source Voltage (Vdss) | 55V |
| Detailed Description | N-Channel 55V 53A (Tc) 107W (Tc) Through Hole TO-220AB |
| Current - Continuous Drain (Id) @ 25°C | 53A (Tc) |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all International Rectifier (Infineon Technologies) series electronic components. We have 108555 pcs of International Rectifier (Infineon Technologies)IRFZ46NPBF in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
