IPW60R125CFD7XKSA1
International Rectifier (Infineon Technologies)
_medium.jpg){kind=logo}

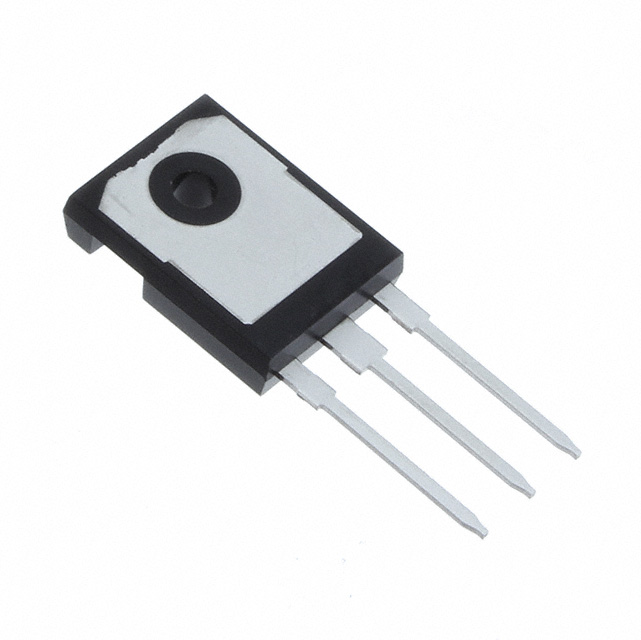

Images are for reference only.
See Product Specifications for product details.
Buy IPW60R125CFD7XKSA1 with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy IPW60R125CFD7XKSA1 with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload IPW60R125CFD7XKSA1 Datasheet| Part Number | IPW60R125CFD7XKSA1 |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Description | HIGH POWER_NEW |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | IPW60R125CFD7XKSA1 |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Product Category | Transistors - FETs, MOSFETs - Single |
| Description | HIGH POWER_NEW |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 32181 pcs |
| Datasheet | IPW60R125CFD7XKSA1.pdf |
| Vgs(th) (Max) @ Id | 4.5V @ 390µA |
| Vgs (Max) | ±20V |
| Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | PG-TO247-3 |
| Series | OptiMOS™ |
| Rds On (Max) @ Id, Vgs | 125 mOhm @ 7.8A, 10V |
| Power Dissipation (Max) | 92W (Tc) |
| Package / Case | TO-247-3 |
| Other Names | SP001686040 |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 1503pF @ 400V |
| Gate Charge (Qg) (Max) @ Vgs | 36nC @ 10V |
| FET Type | N-Channel |
| FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Drain to Source Voltage (Vdss) | 600V |
| Detailed Description | N-Channel 600V 18A (Tc) 92W (Tc) Through Hole PG-TO247-3 |
| Current - Continuous Drain (Id) @ 25°C | 18A (Tc) |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all International Rectifier (Infineon Technologies) series electronic components. We have 32181 pcs of International Rectifier (Infineon Technologies)IPW60R125CFD7XKSA1 in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
