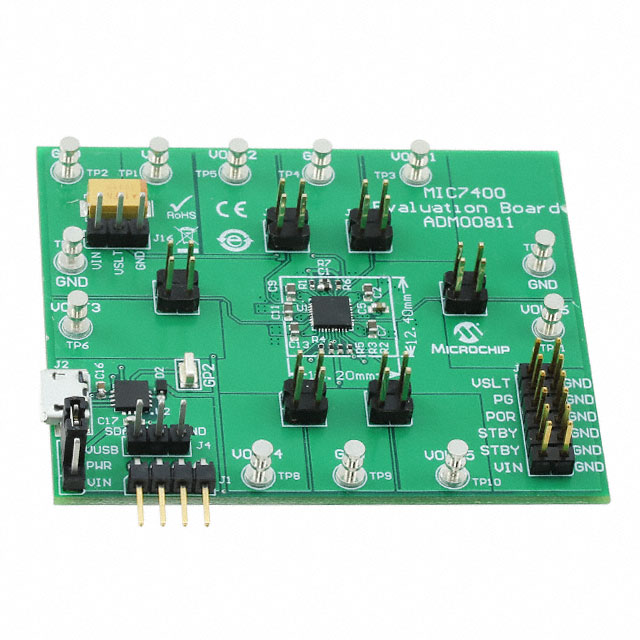

ADM00811
Micrel / Microchip Technology
Images are for reference only.
See Product Specifications for product details.
Buy ADM00811 with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy ADM00811 with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload ADM00811 Datasheet| Part Number | ADM00811 |
|---|---|
| Manufacturer | Micrel / Microchip Technology |
| Description | EVAL BOARD FOR MIC74005 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | ADM00811 |
|---|---|
| Manufacturer | Micrel / Microchip Technology |
| Product Category | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS |
| Description | EVAL BOARD FOR MIC74005 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1165 pcs |
| Datasheet | ADM00811.pdf |
| Voltage - Output | 1.05V, 1.1V, 1.25V, 1.8V, 1.8V or 12V |
| Voltage - Input | 2.4 V ~ 5.5 V |
| Utilized IC / Part | MIC74005 |
| Supplied Contents | Board(s) |
| Series | - |
| Regulator Topology | Buck-Boost |
| Outputs and Type | 6, Non-Isolated |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Main Purpose | DC/DC, Step Up or Down |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Frequency - Switching | 2MHz |
| Detailed Description | MIC74005 - DC/DC, Step Up or Down 6, Non-Isolated Outputs Evaluation Board |
| Current - Output | 3A, 1A, 800mA, 500mA, 500mA or 200mA |
| Board Type | Fully Populated |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all Micrel / Microchip Technology series electronic components. We have 1165 pcs of Micrel / Microchip TechnologyADM00811 in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
